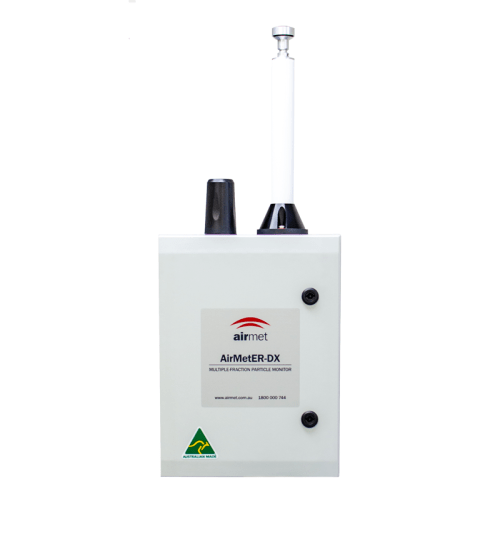

AirMetER-DX Multiple Fraction Particle Monitor

ORDER ME IN
Product code: AMS-DXIV

Order Me In, Once ordered this item will likely dispatch before the 03rd of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The AirMetER-DX is an economical, laser-based optical particle monitor for the simultaneous monitoring and recording of PM2.5 and PM10 dust fractions, with the option for PM1, PM4.25 and TSP.

  • Can measure and log measurements at a minimum of 365 days at one-minute intervals. Data are forwarded and stored automatically in case of network disruptions.
  • Housed in a weather-resistant enclosure to ensure round-the-clock monitoring regardless of the season.
  • Linked with Airmet's web portal to allow users to access data remotely, customize alarm settings and manage reporting and logging options.

Read more

$9,069.00 AUD + GST
 $9,975.90 AUD Inc. GST
The AirMetER-DX is an economical, laser-based optical particle monitor for the simultaneous monitoring and recording of PM2.5 and PM10 dust fractions, with the option for PM1, PM4.25 and TSP.
Designed to withstand various weather conditions, the AirMetER-DX is housed in a weather resistant enclosure ideal for round the clock continuous outdoor monitoring. The AirMetER-DX has datalogging capacity at a minimum of 365 days at one-minute intervals with built-in log and forward capability to locally store the data in the event of a network disruption.
Integrating seamlessly with Air-Met Scientifics web-based portal for remote data access, this secure data portal enables users to access monitoring logs, set customisable alerts, manage monitoring reports and more. The web-service application is accessible on both desktop PC and mobile smart devices.
Various power, mounting options, and additional accessories such as the Air-Met Scientific Solar Battery Solution make the system a versatile choice for any dust monitoring application.
As a low-maintenance remote dust monitor, the AirMetER-DX provides a flexible option for the indicative monitoring of PM1, PM2.5, PM4.25 and PM10 and TSP. The Air-MetER-DX is an Australian Made product.
Features:
- Heated inlet
- Low maintenance
- Locally serviced and supported by Air-Met Scientific
- Support integration of external fixed sensors e.g.Fixed Gas Transmitters, Soil Moisture Probes.
- Optional PM1, PM4.25 & TSP
- Optional alarm indicator capability
- Optional weather monitoring
- Optional noise and vibration monitoring
- Certified Australian Made

Specifications

- PM1, PM2.5, PM4.25, PM10 and TSP Range: 0 to 30,000 ug/m3
- Resolution: 1ug/m3
- Relative Error for PM1/PM2.5/PM4.25: +/-10% of reading
- Relative Error for PM10: +/- 15% of reading
- Relative Error for TSP: +/- 20% of reading
- Enclosure Material: Polycarbonate
- Enclosure Dimensions (mm): 400 H x 300 W x 150 D
- Instrument Weight: 7.0kg
- Mounting Options: Pole-mount kit supplied (recommended installation method) or Wall-mount; ~70 mm offset required for dust inlet clearance
- Power Requirement: 12DVC
- Rated Power: 33W
- Datalogging: 3 years of logs onboard with unique file name creation every 24 hours
- Operating Temperature: 0 to 50 C
- Operating Humidity: 0 to 95% non-condensing
- Operating Pressure: 860 to 1100 hPa
- Particulate Sensor Operating Life: 2 years (when operated below 40 C)
