Add-on board allowing RS485 communication - IC-S43-RS485

ORDER ME IN
Product code: IC-S43-RS485

Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The S43-RS485 is an accessory to the PanelPilotACE range and is compatible with the 4.3 inch. PanelPilotACE display module (SGD 43-A). The S43-RS485 mounts on the rear of the SGD 43-A and provides a 3 wire RS485 interface as well as an optional 120 ohms terminator.

Read more

$48.00 AUD + GST
 $52.80 AUD Inc. GST

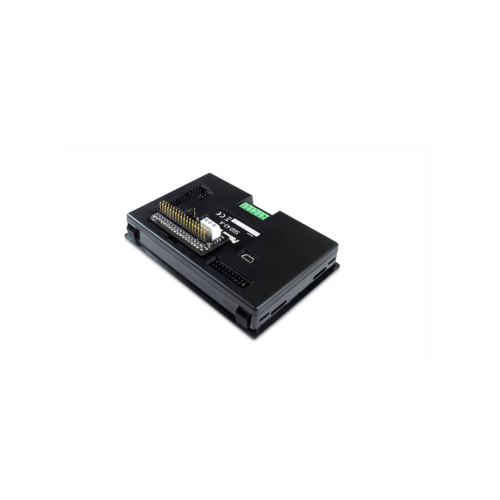

The S43-RS485 is an accessory to the PanelPilotACE range and is compatible with the 4.3 inch. PanelPilotACE display module (SGD 43-A). The S43-RS485 mounts on the rear of the SGD 43-A and provides a 3 wire RS485 interface as well as an optional 120? terminator.

This device can be connected to via the A (Data+), B (Data-) and GND pins and provides half duplex communication.
The software currently supports ASCII based serial communication as well as the MODBUS (RTU) protocol. More protocols are being added.

Specifications

- Receiver Output High Voltage: Vcc-0.6 (4.4V)
- Receiver Output Low Voltage: 0.17 Typical (0.4 Maximum)
- Input Current (V = 12V): 80uA Typical (125uA Maximum)
- Input Current (V=-7V): 50uA Typical (-100uA Minimum)
- Max Data Rate: 20Mbps
- A/B Voltage Absolute Maximum: -8V - +13V
- Operating Temperature Range: 0 to 40 C
