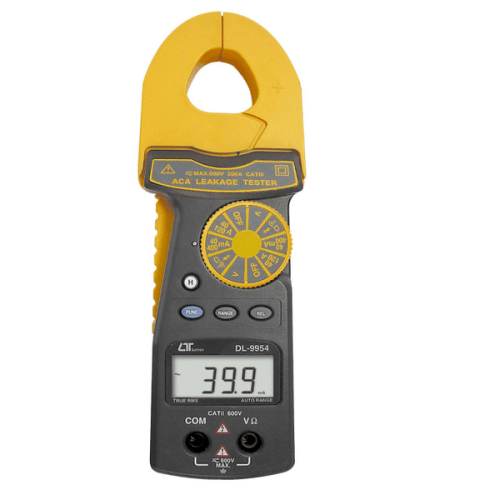

ACA Leakage Tester - IC-DL9954
Order Me In, Once ordered this item will likely dispatch before the 09th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$364.69 AUD Inc. GST
Features
- Measures AC mA on the inductive conductor.
- Can measure ACA, ACV, DCV, Ohms, Diode, and continuity.
- True RMS measuring reading for ACV and ACA function.
- Two AC current range: 40 A, 120 A.
- Max. Jaw open size: 22.3 mm (0.88 inch ) Dia.
- Built with LSI circuit to ensure durability, reliability and rapid and accurate measurements.
- 4000 counts, auto range and multi-functions.
- Data hold function.
- Relative measurement feature.
- Crystal time based.
- Large 10.8 mm LCD display
- Overload protection for all ranges.
- Battery: 2 x 1.5 V AA (UN-3) batteries.
- Encased in a compact, heavy duty and fireproof ABS plastic housing.
- Dimension: 191 x 64.5 x 36.1 mm
Specifications
| Function | Range | Resolution | Accuracy | Overload protection |
| DC Volt | 400 mV | 0.1 mV | +/- ( 0.5 % + 2d ) | AC/DC 600 |
| AC Volt (true rms) | 4 V | 0.001 V | +/- ( 1.2 % + 5d ) | |
| 40 V | 0.01 V | |||
| 400 V | 0.1 V | |||
| 600 V | 1 V | |||
| ACA leakage (true rms) | 40 mA | 0.01 mA | +/- ( 1.5 % + 3d ) | AC 120 A |
| 400 mA | 0.1 mA | |||
| ACA (true rms) | 40 A | 0.01 A | ||
| 120 A | 0.1 A | |||
| Ohms | 400 Ohm | 0.1 Ohm | +/- ( 1 % + 5d ) | AC/DC 400 V |
| 4 K Ohm | 1 Ohm | |||
| 40 K Ohm | 10 Ohm | |||
| 400 K Ohm | 100 Ohm | |||
| 4 M Ohm | 1 K Ohm | +/- ( 2 % + 2d ) | ||
| 40 M Ohm | 10 K Ohm | +/- ( 3.5 % + 5d ) | ||
| Diode | Short/non conductance, good/defect test | |||
