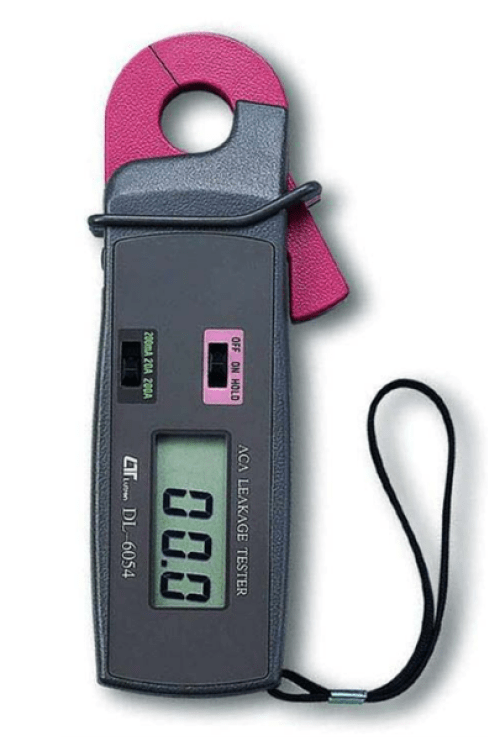

ACA Leakage Tester - IC-DL6054

1 AVAILABLE
Availability Info (?)
Product code: IC-DL6054
High precision AC mA measurement instrument for AC mA leakage current measurement.
Regular price $269.61 AUD + GST
$296.58 AUD Inc. GST

Features

- High precision AC mA measurement, it is useful for AC mA leakage current measurement.
- Measures AC mA on the inductive conductor.
- Miniature type, easy to carry out & operation.
- High precision for low ACA leakage current measurement.
- Built with LSI circuit to ensure durability, reliability and rapid and accurate measurements.
- Built-in DATA HOLD function.
- Automatic zero adjustment
- Overload protection circuit is provided for all range.
- Design meets IEC 1010 safety requirement.

Specifications


- Display: Large 13 mm display, 3 1/2 digits.
- Measurement and resolution 200 AC mA x 0.1 mA, 20 ACA x 0.01 A, 200 ACA x 0.1 A
- Accuracy: +/- (1.2 % + 5 d )
- Overload circuit protection: 300 ACA max. (Within 1 minute for 20A, 200A range).
- Sampling time: Approximately 0.4 seconds
- Operating temperature: 0 to 50 Celsius (32 to 122 Fahrenheit)
- Operating humidity: Less than 80% RH.
- Battery: 006P DC 9V battery.
- Power consumption: Approx. DC 1.2 mA.
- Dimension: 180 x 47 x 35 mm
