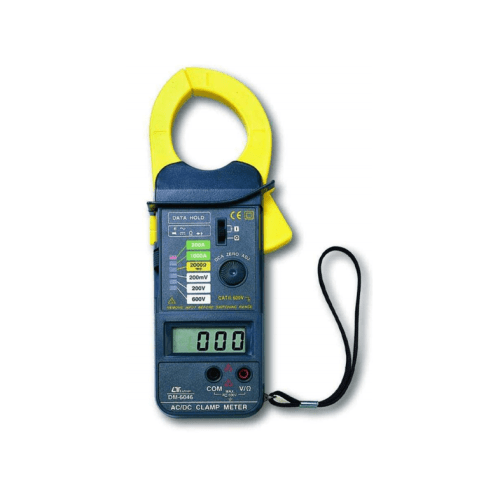

The IC-DM6046 is currently unavailable, please call 130 737 871 to discuss alternatives.
Features
- Measure max. 1000 A DCA or ACA by contactless, inductive conductor.
- Can measure ACA, DCA, ACV, DCV, ohms and Diode.
- High internal impedance to ensure minimal measuring error.
- Conductor jaw size: 78.5 mm ( 3.1 inch ) - outside.
- Built with a LSI circuit to ensure rapid and accurate measurements, reliability and durability.
- Overload protection circuit for all measurement ranges.
- Comes with a large 13 m LCD screen.
- Automated polarity switching.
- Fast sampling time (approximately 0.4 seconds).
- Dimension: 230 x 70 x 36 mm(9.1 x 2.8 x 1.4 inch)
Specifications
| Function | Range | Resolution | Accuracy | Overload Protection |
| DC voltage | 200 mV | 0.1 mV | +/- ( 1 % + 1 d ) | AC/DC 400 V |
| 200 V | 0.1 V | AC/DC 600 V | ||
| 600 V | 1 V | |||
| AC Voltage | 200 V | 0.1 V | +/- ( 1 % + 2 d ) | AC/DC 600 V |
| 600 V | 1 V | |||
| Resistance | 2000 Ohm | 1 Ohm | +/- ( 1 % + 1 d ) | AC/DC 400 V |
| AC/DC Current | 200 A | 0.1 A | +/- ( 1.5 % + 15 d ) | AC/DC 1000 A |
| 1000 A | 1 A | +/- ( 2 % + 5 d ) | ||
| Diode check | Short/non conductance, good/defect test. Approx. diode VF ( forward voltage ). | |||
