Home > 8mm (0.31:), 200 mVdc fullsclae, round metal bezel, LED< IP67/NEMA - IC- EM32-1B-LED
Lascar

8mm (0.31:), 200 mVdc fullsclae, round metal bezel, LED< IP67/NEMA - IC- EM32-1B-LED

ORDER ME IN
Product code: IC-EM32-1B-LED

Backorder Now, once ordered your item will dispatch before the 29th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

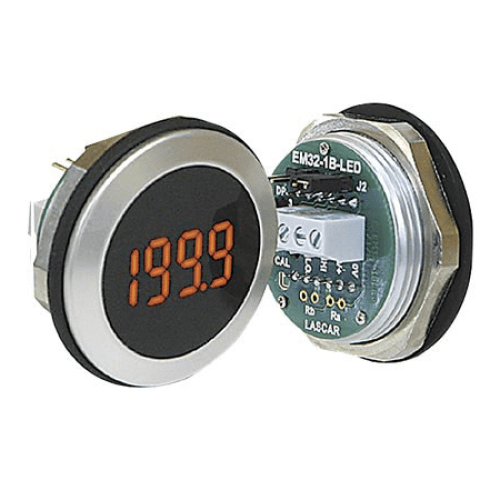

The EM32-1B-LED is a 3.5 digit LED voltmeter, designed to be panel mounted into a 32.5mm (1.28") diameter cut-out. The module features a metal bezel and rubber seal providing IP67/NEMA 4X protection.

Read more

$106.00 AUD + GST
 $116.60 AUD Inc. GST

This panel meter features a 3.5 digit LED display with 8mm (0.31") digit height in a low profile housing. Fitted inside a threaded body which allows easy mounting of the product through a 32.5mm (1.28 inch) hole, this unique enclosure is ideal for quick mounting. A rubber seal provides waterproof protection to IP67 / NEMA 4X when fitted between the meter and mounting panel. Connection is via screw terminals.

Specifications


- Range: 200 mV d.c.
- Accuracy (overall error): 0.1 % (+/- 1 count)
- Operating temperature: 0 to 50 C (32 to 122 F)
- Sample rate: 2.5 samples/sec
- Supply Voltage: 4.75 to 5.25 V d.c.
- Supply Current: 50 100 mA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
