Home > 8mm (0.31:), 200 mVdc fullsclae, round metal bezel, LCD
Lascar

8mm (0.31:), 200 mVdc fullsclae, round metal bezel, LCD

ORDER ME IN
Product code: IC-EM32-1B

Backorder Now, once ordered your item will dispatch before the 15th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

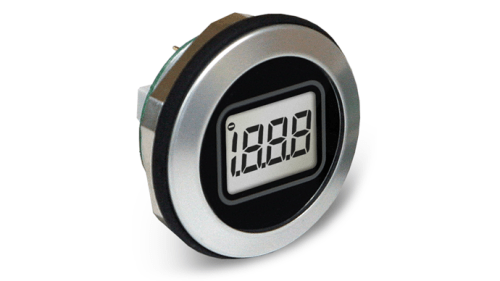

The EM32-1B is a 3.5 digit LCD voltmeter which is designed to be panel mounted into a 32.5mm (1.28") diameter cut-out. The module features a metal bezel and rubber seal providing IP67/NEMA 4X protection.

Read more

$106.00 AUD + GST
 $116.60 AUD Inc. GST

This panel meter features a 3? digit LCD with 8mm (0.31") digit height in a low profile housing. Fitted inside a threaded stud which allows easy mounting of the product through a 32.5mm (1.28?) hole, this unique enclosure is ideal for quick mounting. A rubber seal provides waterproof protection to IP67 / NEMA 4X when fitted between the meter and mounting panel. Connection is via screw terminals.

Specifications

- Range: 200 mV d.c.
- Accuracy (overall error): 0.1 % (?1 count)
- Operating temperature: 0 to 50 ?C (32 to 122 ?F)
- Sample rate: 2.5 samples/sec
- Supply Voltage (default): 3.5 5 6.5 V d.c.
- Supply Voltage (config.): 7.5 9 14 V d.c.
- Supply Current (default): 500 uA
- Supply Current (config.): 150uA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
