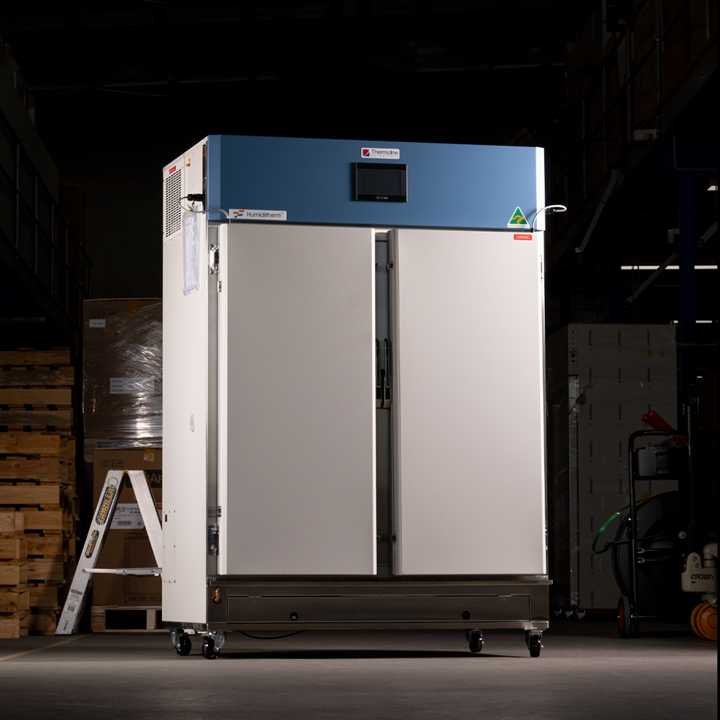

850L -30 to +120 C Temperature and Humidity Cabinet

ORDER ME IN
Product code: TEC-850-SD

Order Me In, once ordered this item will likely dispatch before the 30th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The TEC series manufactured by Thermoline offers precise control of temperature and humidity. This key model has the ability to perform heating, cooling, humidification and dehumidification functions. This model features a wide temperature range of -30 to +120 C, has up to 600watts heat removal capacity and is internally constructed from 316 stainless steel and are externally constructed from Colorbond steel.
Regular price $56,390.00 AUD + GST
$62,029.00 AUD Inc. GST

The TEC Envirotherm Cabinet series, manufactured by Thermoline, offer accurate and precise temperature and humidity control. These high-performance models can perform heating, cooling, humidification and dehumidification functions.

With the ability to produce climate conditions similar to specimens' native environments, it's only natural that you'd choose our Envirotherm cabinets to store your samples. Robust and reliable, our cabinets' refrigeration systems can simulate temperatures from -30°C to +120°C with a 30–95% relative humidity range, and offer 600 watts of heat removal capacity. Whether you're conducting material testing or climate testing, you can be confident that your equipment is keeping your samples safe. Even if you need to open the door, the cabinet's fast recovery time will limit any temperature fluctuations, maintaining uniform conditions throughout the chamber enclosure.

Features

- Temperature and Humidity Control: Simulates temperatures from -30°C to +120°C with a 30–95% relative humidity range.
- Fast Recovery Time: Minimises temperature fluctuations when the door is opened, maintaining uniform conditions.
- Constant Airflow: Ensures conditions remain uniform throughout the enclosure, with alarms to alert if deviations from setpoints occur.

Powered by our STAR X touchscreen control system, you can easily and precisely control the cabinet's temperature, humidity, and optional carbon dioxide. The STAR X system offers:

- Real-Time Synchronisation: Allows the operator to synchronise programmed settings to real time.
- Ethernet Connectivity: Enables the operator to perform all functions via a PC.
- Data Logging: Logs the performance of the cabinet to onboard memory, holding up to 365 days of data. A live trend screen allows quick performance checks, and logged data can be downloaded to a USB flash drive for archiving or review via a PC using simple spreadsheet software like Microsoft Excel.

Specifications

- Temperature Range: -30°C to +120°C
- Temperature Control Stability: +/- 0.2°C
- Temperature Uniformity: +/- 2.0°C
- Humidity Range: 30% to 95%RH (within +10°C to +90°C temp range) as per Control Envelope
- Humidity Uniformity: +/- 5%RH
- Heat Removal Capacity @ 10°C: 800 watts
- CO2 Range (Optional): Ambient to 3000 PPM (temperature limited to 60°C)
- Porthole Diameter: 50mm
- Electrical: 15A/230V
- Nominal Capacity: 850L
- External Dimensions (WxDxH mm): 1360 x 1040 x 2020
- Internal Dimensions (WxDxH mm): 1170 x 650 x 1105
- Front (mm): 750
- Back (mm): 300
- Sides (mm): 300
- Weight: 360kgs
