ADAM Equipment

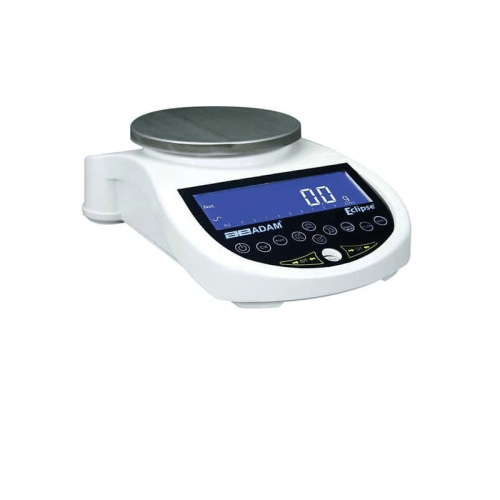

8200g x 0.1g ADAM Eclipse Analytical Balance with External Calibration

DISCONTINUED
Product code: IC-EBL-8201e

Unfortunately, the EBL-8201e has been discontinued, please check out our other Precision and Analytical Balances for more options or please call 130 737 871 to discuss alternatives.

The ADAM Eclipse series are analytical laboratory scales that combines a compact footprint with a pleasing design that aims to provide accurate results and efficient laboratory operations.

  • Weight capacity of 8200g x 0.1g.
  • Has a large display with each character 24 mm tall for convenient viewing.
  • GLP compliant and can print out data either through USB or RS-232 interface.

Read more

Unfortunately, the EBL-8201e has been discontinued, please check out our other Precision and Analytical Balances for more options or please call 130 737 871 to discuss alternatives.

Note: This is a run-out model with limited stocks available
This series has a capacitive touch keypad contains illuminated keys, which provide intuitive navigation of the balances functions. Featuring one of the largest LCD readouts in the industry, the Eclipse displays sizeable white digits on a dark background, ensuring exceptional visibility. Clear, discernible symbols and multilingual text enable easy operation, while prompts simplify even the most complex activities. Small pan precision models have a compact footprint, so the balance occupies minimal space on the laboratory work bench.
Connectivity, whether its basic data printing or advanced communication with a LIMS, is achieved with USB and RS-232 interfaces. Printouts with time, date, and other information are provided to comply with GLP requirements. Eclipse models offer the choice of internal or external calibration.
Features:
- Vivid, backlit LCD easily visible in any lighting conditions
- Capacity tracker built into display for easily monitoring possible overloads
- Programmable backlight can be set to always on, always off or light only when weighing
- Large, grade 304 stainless steel pan allows easy cleaning
- Overload protection helps prevent damage to internal components
- Robust metal housing protects internal components in harsh environments
- Sealed keypad protects against dirt and spills
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- The illuminated capacitive touch keypad provides responsive operation, and its durable, smooth surface can be easily wiped down
- Multilingual display allows use in many different countries
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Security password control prevents unauthorised access
- Selectable digital filtering helps minimise effects of vibration and disturbances
- AC adapter included

Specifications

- Capacity: 8200g
- Readability: 0.1g
- Repeatability (S.D.): 0.2g
- Linearity (+/-): 0.3g
- Pan Size: 160mm dia.
- Weighing Units: g, mg, ct, GN, dr, oz, ozt, dwt, mm, tl.T, tl.H, tl.S, ti, T, custom unit
- Stabilisation Time (sec): 3
- Interface: RS-232, USB
- Calibration: External calibration allows for verification and adjustment with weights
- Display: Backlit LCD with capacity tracker with 24mm-high digits
- Power Supply: 18VDC 50/60Hz 830mA adapter
- Operating Temperature: 15 to 35 C
- Housing: Extruded aluminum base with a die-cast aluminum case
- Overall Dimensions: 220x310x89mm (wxdxh)
- Net Weight: 4.5kg
