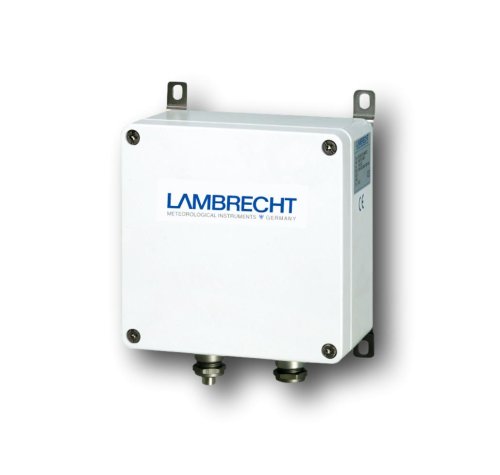

8128 Air Pressure Sensor (800 to 1100 hPa)

ORDER ME IN
Product code: IC-00.08128.095072

For a personalised quote, please press add to quote. Then follow the prompts to notify our team.

The 8128 is a precise analogue pressure sensor ideally for applications in non air-conditioned measuring stations or data loggers.

  • - Built with a thermally stable ceramic sensor.
  • - The sensor has a very low current consumption.
  • - Includes factory test certificate and VA mounting brackets.

Read more

$7,626.72 AUD + GST
 $8,389.40 AUD Inc. GST
The analogue pressure sensor 8128 is a very accurate and versatile instrument, it suits ideally for applications in non air-conditioned measuring stations or data loggers. The sensor has a very low current consumption and is suitable for pressure measurements in clean and dry air or other non-condensing gases.
It uses a thermally stable, capacitive ceramic sensor is encapsulated in glass and connected to a high-quality electronic measuring device which allows for an exact signal processing in consideration of environmental influences. The sensor has an excellent coefficient of thermal expansion and a very low mechanical hysteresis; therefore a high temperature- and long term stability is achieved.
Can be used as a pressure sensor for an outdoor weather station. This model also includes VA mounting brackets.
Features
- Inexpensive
- Energy saving
- Analogous output signal
- With factory test certificate
- Uses microprocessor technology

Specifications

- Measurement range: 600 to 1100 hPa
- Accuracy: +/- 0.3 hPa within the range at 20 C
- Resolution: 0.01 hPa
- Long-term stability: 0.1 hPa/ year
- Output: 0...5 VDC
- Range of application: altitude 0...3200 m / temperatures -40...+60 C
- Supply voltage: 9.5...28 VDC
- Power consumption: 3 mA
- Measuring elements: pressure sensitive silicon diaphragm; capacitive
- Dimensions: 196 x 160 x 97 mm
- Housing: aluminium protection guard / RAL 9010 (clean-white) / IP 43
- Weight: sensor module: 0.135 kg / 1.6 kg with protective housing
