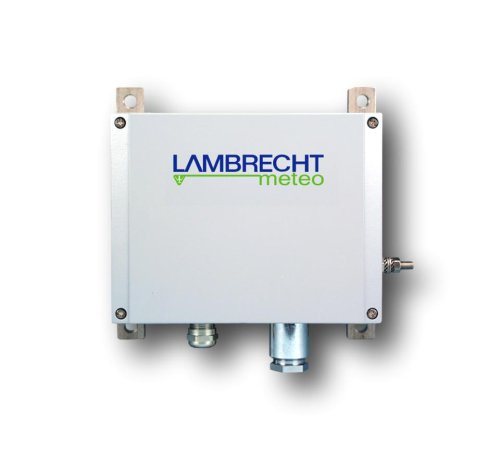

8126 X81 Precision Air Pressure Sensor

ORDER ME IN
Product code: IC-00.08126.481002

Order Me In, once ordered this item will likely dispatch before the 16th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

Precise industrial sensor for absolute pressure designed with a microprocessor controlled sensor working on the resonance principle for high reliability and accurate results.

  • -Has an an accuracy of +/- 0.01 % full scale.
  • -Signal output realised with a serial port of RS 485 that can be linked to specific Lambrecht data logger models.
  • -The housing is lined with conductive rubber sealing and metallic cable inlets and is seawater resistant.

Read more | Need help? 3 Hour Business Reply

$14,870.69 AUD + GST
 $16,357.76 AUD Inc. GST
Explicitly highly precise that's how this LAMBRECHT meteo sensor for absolute pressure works.
It is applicable word-wide in a large altitude range. The measuring system with its seawater resistant, multi-layer paint coated housing is extremely robust.
Features
- High reliability
- Serial output signal
- With factory test certificate
- Microprocessor technology

Specifications

- Measuring range: 35...2000 hPa
- Accuracy: +/- 0.1 hPa in calibrated range from 750...1150 hPa
- Long-term stability: +/- 100 ppm/ year
- Interface: RS 485 (no bus function)
- Range of application: -45...+85 C during operation
- Supply voltage: 11...28 VDC
- Current consumption: typically 16.5 mA max. 32 mA
- Measuring elements: silicon resonator
- Dimensions: 205 x 180 x 81 mm
- Housing: RAL 7001 (grey)
- Weight: approx. 2.0 kg
- Standards: BS EN 61000-6-1:2007 BS EN 61000-6-2:2005 BS EN 61000-6-3:2007 BS EN 61000-6-4:2007 BS EN 61326-1:2006
