8121 Air pressure sensor (500 to 1100 hPa)

ORDER ME IN
Product code: IC-00.08121.110002

Backorder Now, once ordered your item will dispatch before the 22nd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

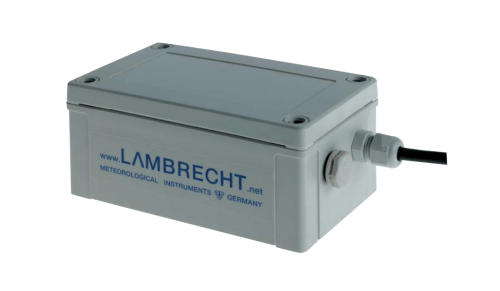

The 8121 is a barometric air pressure sensor that enables the on site changeover of the measuring range, as well as the choice of the output signal enclosed in a protective housing.

  • -1 instrument with 2 ranges of pressure measurement and 3 standard outputs - adjustable with plug-in jumpers.
  • -OEM variant with 3 modes of operation.
  • -Applicable with/ on data loggers in energy-saving mode (e.g. solar operation).

Read more

$1,349.20 AUD + GST
 $1,484.12 AUD Inc. GST
Absolute pressure is measured inside the cost effective, practical and robust standard housing. The technical design enables the on site changeover of the measuring range, as well as the choice of the output signal. This universally applicable sensor is the right solution for price conscious customers. It distinguishes itself through its low maintenance and easy operation.
Features:
- Good price-performance ratio
- Measuring range: 500 to 1100 hPa switchable to 800...1100 hPa
- High precision of +/- 1 hPa
- 2 pressure ranges and 3 output values within one device, can be easily set by user
- Low power mode for solar supply, 5 mA
- High quality, rugged polycarbonate housing
- Power supply (5)12...30 VDC
- Electrical connection through clamp connectors permanent tight fi t, no more loose screws
Applications:
- Reasonably priced barometric pressure sensor for general purposes
- Weather stations
- Building services
- Industrial applications

Specifications

- Measuring range: 500...1100 hPa switchable to 800...1100 hPa
- Accuracy: +/- 1 hPa within the range -10...+60 C / less than or equal to +/- 2 hPa within the range -20...-10 C
- Resolution: 0.1 hPa
- Output: 0...20 mA 4...20 mA / 0...2 V - selectable / adjustable
- Range of application: altitude 0...4000 m / temperatures -20...+70 C / humidity 0...99 % r. h.
- Supply voltage: 12...30 VDC (current output) / 5...30 VDC (voltage output)
- Power consumption: less than 30 mA at 0(4)...20 mA output / less than 4 mA at 0...2 VDC output / at 1000 ohms load resistor
- Measuring elements: piezoresistive pressure measuring cell
- Design: wall mounting
- Dimensions: 130 x 80 x 60 mm
- Housing: resistor polycarbonate RAL 7035 (light-grey) / 1 cable entrance / 1 pressure equalisation
- Protection class: IP 66
- Weight: 0.3 kg with cable
- Cable: 2 m connecting cable 4-pole
