8096 NAV-Z Humidity-Temperature Sensor (BV0230/ 0430 and BV0440/ 0240)
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 18th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

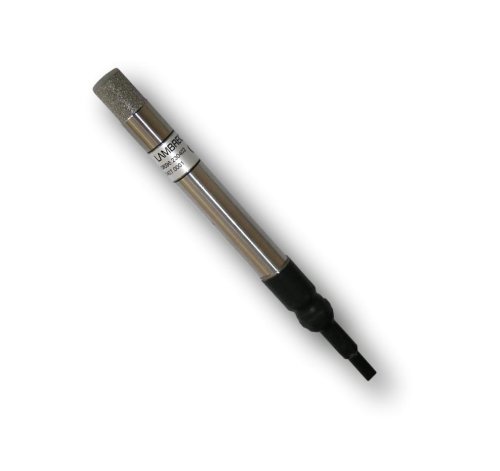

The 8096 NAV Z Humidity-temperature sensor is a precision instrument for measuring relative humidity and air temperature, tested for shock and vibration.
- -Tested according to BV0230/ 0430 and BV0440/ 0240.
- -Uses Pt100 1/3 DIN.
- -Low power consumption with high measuring accuracy.
- -Built with a sinter filter to protect the sensor from air pollutants.
- -Made for outdoor applications (IP65 protection).
Regular price
$3,095.71 AUD
+ GST
$3,405.29 AUD Inc. GST
$3,405.29 AUD Inc. GST
The sensor (8096-Z) is a precision measuring instrument for measuring relative humidity and air temperature. The compact sensor is characterised by a power-saving electronic and high measuring accuracy.
A membrane fi lter reliably protects the high-quality capacitive measuring element from air pollutants. If the device is handled properly the perfect function and longterm stability as well as high accuracy are ensured.
It is also a shock and vibration-tested precision instrument according to BV0230/ 0430 and BV0440/ 0240.
Features
- Precision measuring instrument for high-quality use in building services or industry
- Capacitive humidity measuring element
- Special resistance to air pollutants
- High long term stability
- Signal output humidity: 0...1 V (linear 0...100 %)
- Measuring element temperature: Pt100 1/3 DIN
- Signal output temperature: Pt100 in 4-wire circuit
- For automatic weather stations in all climatic zones
Specifications
- Meas. range air temperature: -40...+70 C
- Meas. range rel. humidity: 0...100 % r. h.
- Accuracy air temperature: +/- 0.1 C, 1/3 DIN IEC 751 Class B
- Accuracy rel. humidity: +/- 2 % r. h. at: 5...95 % r. h. / 10...+40 C (at more than 0.5 m/s) / plus: less than 0.1 % r. h./ C at: less than +10 C /more than +40 C
- Response time: Humidity: less than 20 s (without wind and without filter, otherwise at 1.5 m/s: 1.5 min)
- Output: Humidity: 0...1 V DC = 0...100 % r.h. Min. load resistance more than or equal to 2 k Ohm
- Temperature: Pt100 (4-wire circuit)
- Range of application: 0...100 % r. h./ -40...+70 C
- Supply voltage: 6...30 V DC
- Power consumption: less than 1 mA
- Measuring elements: humidity: capacitive / temperature: Pt100 1/3 DIN (DIN EN 60571) / IEC 751 Class B (+/- 0.1 C)
- Housing: stainless steel / IP 65 / protection class of filter IP 40 / sinter filter for outdoor use
- Weight: approx. 0.3 kg
- Standards: EMV: DIN EN 60945 - Kap. 9, 10, BV0230/ 0430 and BV0440/ 0240
- Cable: 3.3 m fixed cable
