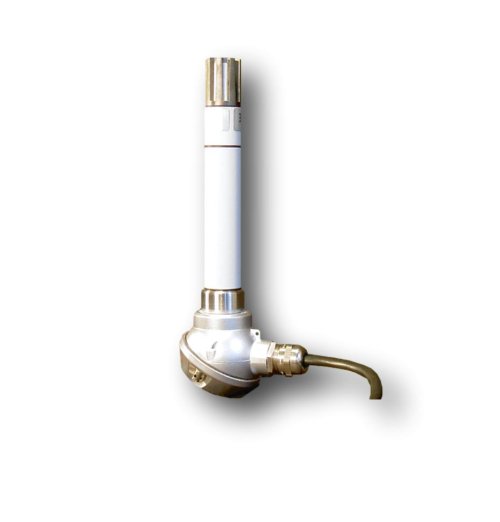

8091 Humidity-Temperature Sensor

ORDER ME IN
Product code: IC-00.08091.000042

Backorder Now, once ordered your item will dispatch before the 11th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The 8091 humidity and temperature sensor is designed with a reliable membrane filter to protect against airborne pollutant to ensure sustained operation and protecting its advanced electronics to ensure accurate readings.

  • -Compact and low power consumption.
  • -Simple to install and requires minimal maintenance.
  • -temperature measuring element: Pt100.

Read more

$1,259.00 AUD + GST
 $1,384.90 AUD Inc. GST
The sensor 8091 is a precision measuring instrument for measuring relative humidity and air temperature. It is designed for high-quality use in building services, industry etc.
Special resistance to air pollutants is achieved by the use of a high-quality capacitive measuring element which, in combination with the sophisticated electronics, guarantees outstanding measuring accuracy
Features:
- Precision measuring instrument for high-quality use in building services, industry etc.
- Capacitive humidity measuring element
- Temperature measuring element: Pt100
- Signal output humidity: 0...100 % r. h. = 4...20 mA/ resp. 0...100 % r. h. = 0...10 VDC
- Signal output temperature: -30...+70 C = 4...20 mA/ resp. -30...+70 C = 0...10 VDC
- Special resistance to air pollutants
- High long term stability
- Maintenance free

Specifications

- Meas. range air temperature: -30...+70 C
- Meas. range rel. humidity: 0...100 % r. h.
- Accuracy air temperature: +/- 0.3C (4...20 mA); plus +/- 0.007 K/K (less than 10 C, more than 40 C)
- Accuracy rel. humidity: +/- 2 % r. h. (5...95 % r. h. at 10...40 C); plus less than 0.1 %/ K (less than 10 C, more than 40 C)
- Response time: less than 1 min
- Long-term stability: typical under normal conditions less than 1% r. h./ year
- Output: 00.08091.000042: 4...20 mA/00.08091.000012: 0...10 VDC
- Supply voltage: 00.08091.000042: 12...30 VDC/00.08091.000012: 15...30 VDC
- Power consumption: max. 45 mA
- Measuring elements: capacitive, Pt100, IEC 751 class B
- Dimensions: H 180 mm x 20 mm
- Housing: aluminium lacquered grey-white
- Protection class: IP 65, membrane filter as sensor protection IP 30
- Weight: 0.34 kg
- Standards: CE/ EMV: DIN 50082-2 EN 550011 cl. B
