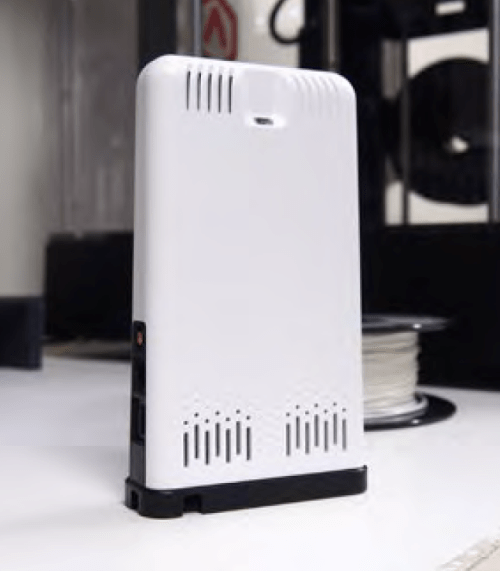

6805 EnviroMonitor IP Gateway

ORDER ME IN
Product code: IC-6805

Order Me In, once ordered this item will likely dispatch before the 04th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The new IP EnviroMonitor Gateway collects data from EnviroMonitor Nodes and sends it to WeatherLink.com via Wi-Fi or Ethernet Cable. The IP Gateway is compatible with both Cabled and Wireless Integrated Sensor Suites, so it's a great option for customers with an existing station who would like to benefit from the broad sensing capabilities of the EnviroMonitor Mesh Network platform. Can be mounted outdoors using a 6618 Universal Shelter.

Read more | Need help? 3 Hour Business Reply

$998.00 AUD + GST
 $1,097.80 AUD Inc. GST

Please note: Can only be shipped to Australian customers

The new IP EnviroMonitor Gateway collects data from EnviroMonitor Nodes and sends it to WeatherLink.com via Wi-Fi or Ethernet Cable. The IP Gateway is compatible with both Cabled and Wireless Integrated Sensor Suites, so it's a great option for customers with an existing station who would like to benefit from the broad sensing capabilities of the EnviroMonitor Mesh Network platform.

Can be mounted outdoors using a 6618 Universal Shelter.

PLEASE NOTE: Each Gateway requires an Annual Service Plan. Annual subscriber fees depend on the frequency of your update interval. Choose one of three update intervals in the EnviroMonitor app during installation.

All prices are in US Dollars and per Gateway/IP Gateway

Specifications

Barometric pressure:

- Resolution and units: 0.001" Hg, 0.1 mm, 0.1 hPa, 0.1 mb. (user selectable)
- Range: 16.00 to 32.50" Hg, 410 to 820 mm Hg, 540 to 1100 hPa or mb
- Elevation range: -460 to 4670 m
- Uncorrected reading accuracy: +/- 0.03" Hg (+/- 0.8 mm Hg, +/- 1 hPa/mb)
- Sea-level reduction equation used: Altimeter
- Equation acccuracy: +/-0.01" Hg (+/- 0.3 hPa/mb)
- Elevation accuracy required: +/- 3m to meet equation accuracy specification
- Trend (change in 3 hours): Change +/- 0.06" (2.0 hPa/mb, 1.5 mm Hg) = Rapidly; Change +/- 0.02" (0.7 hPa/mb, 0.5 mm Hg) = Slowly
- Range for rising and falling trend alarms: -0.255 to 0.255" Hg (-6.5 to 6.5 mm Hg, -8.6 to 8.6 hPa/mb)
- Update interval: 1 minute

General:

- Operating temperature: 0 to 60 C
- Average current draw: 100 mA
- Peak current: 700 mA
- Housing material: Rugged ABS plastic
- Dimensions (height x width x depth): 18 x 10 x 3 cm
- Battery life: 5 days
- AC Adapter: 5 VDC, 1000 mA
- Wifi Frequency range and power: 2412-2472 MHz, 802.11b/g/n; less than 72mW
- BLE Frequency range and power: 2402-2480 MHz, less than 1mW
