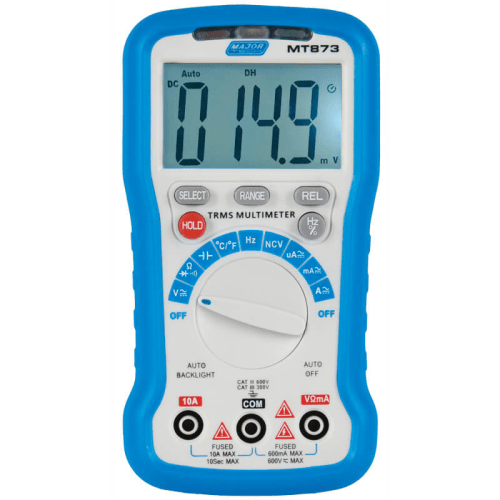

600V AC/DC True RMS Multimeter - MT873
Backorder Now, once ordered your item will dispatch before the 09th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The MT873 is a True RMS multimeter built with different functions and features for a wide variety of applications.
- Designed with versatility in mind and can measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, Non Contact AC Voltage (NCV) detection, diode test and audible continuity.
- Has a large LCD for easier viewing of measurements.
- Slim in size for portability and drop tested.
Regular price
$89.30 AUD
+ GST
$98.23 AUD Inc. GST
$98.23 AUD Inc. GST
The MT873 is a True RMS multimeter and can be used to measure AC/DC voltage, AC/DC current, resistance, capacitance, frequency, duty cycle, Non Contact AC Voltage (NCV) detection, diode test and audible continuity. It also features a data hold & relative mode functions. This multimeter is a slim sized, portable, robust drop proof digital multimeter has a 6000 count digit LCD monitor with large 25mm digits that offer clear and easy reading. The circuitry design is centred on large-scale IC A/D converters in conjunction with an over-load protection circuit, the meter offers excellent performance and is ideal for a versatile digital multimeter.
Specifications
- DC Voltage measurement range: 0.1mV to 600V, 0.1mV +/- (0.5% + 2 Digits)
- AC Voltage measurement range: 1mV to 600V, 1mV +/- (1.0% + 3 Digits)
- DC Current measurement range: 0.1uA to 10A, 0.1uA +/- (1.2% + 2 Digits)
- AC Current measurement range: 0.1uA to 10A, 0.1uA +/- (1.5% + 3 Digits)
- Duty Cycle measurement range: 0.1 to 99.9%, 0.001 +/- (2% + 2 Digits)
- Resistance: 0.1 ohms to 60 milliohms, 0.1 ohms +/- (1.0% + 2 Digits)
- Frequency: 0.1 ohms to 60 milliohms, 0.001Hz +/- (0.1% + 5 Digits)
- Capacitance: 1pF to 99.99mF, 1pF +/- (2.5% + 5 Digits)
- Temperature: -20 to 1000 C, 1 C +/- (3.0% + 2 C Digits)
- True RMS Measurements: Yes
- AC Bandwidth: 40Hz to 400Hz
- Digital Display: 6000
- Continuity: Yes
- Diode Test: Yes
- Non-Contact Voltage (NCV): Yes
- Overrange Indication: Yes
- Input Impedance: 10 milliohms VDC and 10 milliohms VAC
- Data Hold: Yes
- Enclosure: Rubber holster
- Low Battery Indication: Yes
- Battery: 9V
- Dimensions: 150 x 100 x 36mm
- Safety Specs: IEC61010-1 CAT II 600V
