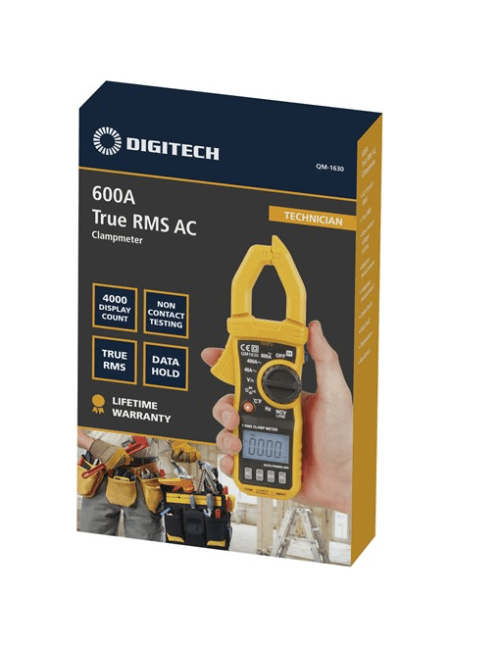

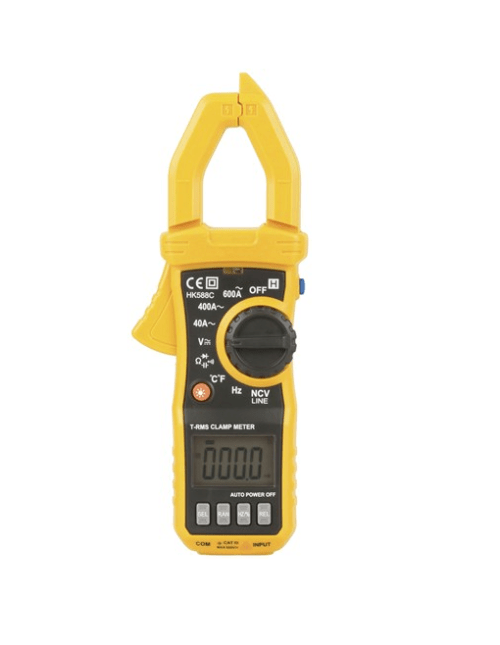

Unfortunately, the QM1630 has been discontinued, check out our other Clamp Meters for more options.


Functions:
- True RMS
- Voltage
- Relative measurement
- Frequency measurement
- Capacitance
- Temperature
- Resistance
Features:
- Display: 4000 count
- Measurement Category: Cat III 600V
- Basic VDC Accuracy: 0.5%
- AC Rectification: True RMS
- Non contact voltage testing
- LINE test
- Data hold
- Backlight
Specifications
- Capacitance Ranges : 10.0nF, 100.0nF, 1.0uF, 10.0uF, 100.0uF, 1.0mF, 10.0mF, 100.0uF
- AC Current Ranges : 40.0A, 400.0A, 600.0A
- Frequency Ranges : 10.0Hz, 100.0Hz, 1.0kHz, 10.0kHz, 100.0kHz, 1.0MHz
- Resistance Ranges : 400.0, 4.0k, 40.0k, 400.0k, 4.0M, 40.0
- Outdoor / Exterior Scale : -20.000000 C, 1000.0 C
- Outdoor / Exterior Scale : 0.0 F, 1800.0 F
- AC Voltage Ranges : 400.0mV, 4.0V, 40.0V, 400.0V, 600.0V
- DC Voltage Ranges : 400.0mV, 4.0V, 40.0V, 400.0V, 600.0V
- Records Minimum : true
- Records Maximum : true
- Data Hold : true
- Display Type : LCD
- Display Backlight : White LED Backlit
- Safety Rating Cat : Cat III
- Safety Rating Max Volt : 600.0V
- Count / Maximum Reading : 4000.0 count
- True RMS : true
- Autorange : true
- Measures duty cycle : true
- Width : 72.0mm
- Height : 194.0mm
- Depth : 35.0mm
- Size / Shape : AAA
- Battery quantity : 3.0pc
- Batteries included : true
- Batteries can be replaced by user : true
- Compartment location : Back
- How is battery compartment kept closed : Screw
- Measurement Range Count : 4000.0 count
- Meter Input Impedance : 10.0M
- Non-contact Voltage Indicator : true
- Measures diode : true
