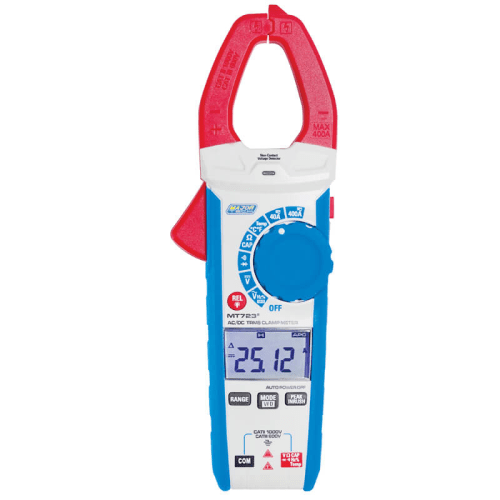

MT723 400A AC/DC True RMS Clamp Meter

ORDER ME IN
Product code: MT723

Order Me In, Once ordered this item will likely dispatch before the 10th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT723 is a 400A AC/DC True RMS Clamp Meter that is CAT III 600V, has a 4000 count large backlit LCD display providing fast sampling time with high accuracy.

  • Measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, and 100ms Inrush current and Peak Voltage value.
  • Precision instrument that can be used in high frequency applications.
  • Provides additional features such as relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, etc.

Read more

$189.50 AUD + GST
 $208.45 AUD Inc. GST
The MT723 is a 400A AC/DC True RMS Clamp Meter that is CAT III 600V, has a 4000 count large backlit LCD display providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency, capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Features:
- CAT III 600V and CAT II 1000V
- 4000 count backlit LCD display
- 400A AC/DC
- 1000V AC/DC
- Resistance: 40 milliohms
- Frequency: 10kHz
- Capacitance: 100mF
- Temperature: -20 to 1000 C
- With 30mm diameter Cable Clamp size
- INRUSH Current Measurements
- VFD Variable Frequency Drive voltage value
- NCV Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Peak Mode and Data Hold function
- Auto Power Off

Specifications

- DC Current measurement: 0.01A to 400A x 0.01A +/- (2.0% +8 Digits)
- AC Current measurement: 0.01A to 400A x 0.01A +/- (2.0% +8 Digits)
- DC Voltage measurement: 1mV to 1000V x 1mV +/- (1.0% + 3 Digits)
- AC Voltage measurement: 1mV to 1000V x 1mV +/- (1.2% + 5Digits)
- Resistance measurement: 0.1 ohms to 40 milliohms x 0.1 ohms +/- (1.5% + 2 Digits)
- Frequency measurement: 1Hz to 100kHz x 1Hz +/- (1.0% + 5 Digits)
- Capacitance: 0.01nF 99.99mF x 0.01nF +/- (3.0% + 5 Digits)
- Temperature: -20 to 1000 C x 1 C +/- (3% + 3 C Digits)
- Duty Cycle: 20 to 80% x 0.1 +/- (1.2% + 10 Digits)
- AC Bandwidth: 2kHz
- Digital Display: 4000
- Overrange indication: Yes
- Continuity: Yes
- Diode Test: Yes
- Jaw Size: 30mm
- Input Impedance: greater than 10 milliohms DCV and greater than 10 milliohms VAC
- Peak Hold: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Double moulded case
- Low Battery Indication: Yes
- Batteries: 3x AAA
- Weight: 305g
- Dimensions: 220 x 80 x 39mm
- Safety Specs: IEC61010-1 CAT III 600V
