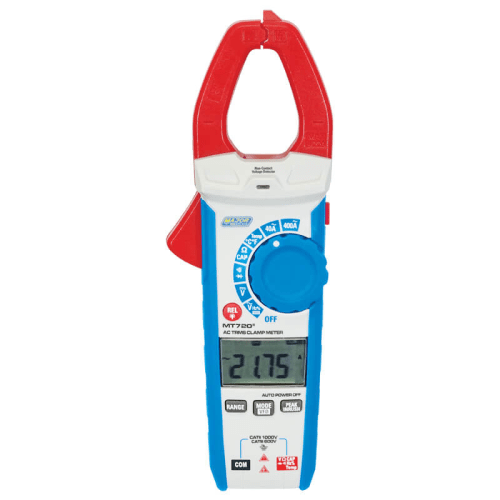

MT720 400A AC True RMS Clamp Meter

ORDER ME IN
Product code: MT720

Order Me In, Once ordered this item will likely dispatch before the 10th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The MT720 is a CAT III 600V, 4000 count True RMS 400A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy.

  • Measures 1000V AC/DC, temperature, frequency , capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value.
  • Precision instrument that can be used in high frequency applications.
  • Provides additional features such as relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, etc.

Read more

$129.10 AUD + GST
 $142.01 AUD Inc. GST
The MT720 is a CAT III 600V, 4000 count True RMS 400A AC digital clamp meter with indication on a large backlit LCD display, providing fast sampling time with high accuracy. The meter measures 1000V AC/DC, temperature, frequency , capacitance and resistance measurements, plus 100ms Inrush current and Peak Voltage value. The VFD function allows the user to measure stable voltage in high frequency applications of Variable Frequency Drives. Added features include Relative mode for Capacitance Zero and DCV, ACV and ACA offset adjustment, Non-Contact voltage detection, Data hold function and a built-in flashlight for dimly lit areas. Housed in a modern double moulded rubber housing.
Features:
- CAT III 600V and CAT II 1000V
- 4000 count backlit LCD display
- AC and DC Voltage: 1000V
- AC Current: 400A
- Resistance: 40 milliohms
- Frequency: 100kHz
- Capacitance: 99.99mF
- Temperate: -20 to 1000 C
- Duty Cycle: 80%
- Has a 30mm Cable Clamp size
- INRUSH Current Measurements
- VFD Variable Frequency Drive voltage value
- NCV Non-Contact Voltage Detector
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Peak Mode and Data Hold function
- Auto Power Off

Specifications

- AC Current measurement: 0.01A to 400A x 10mA +/- (2.5% + 8 Digits)
- DC Voltage measurement: 0.01A to 400A x 1mV +/- (1.0% + 3 Digits)
- AC Voltage measurement: 0.01A to 400A x 1mV +/- (1.2% + 5 Digits)
- Resistance: 0.1 ohms to 40 milliohms x 0.1 ohms +/- (1.5% + 2 Digits)
- Frequency: 10Hz to 100kHz x 1HZ +/- (1.0% + 5 Digits)
- Capacitance: 0.01nF to 99.99mF x 0.01nF +/- (3.0% + 5 Digits)
- Temperature: -20 to 1000 C x 0.1 C +/- (3.0 C + 3 Digits)
- Duty Cycle: 20.0% to 80.0% x 0,001 +/- (1.2% + 10 Digits)
- True RMS Measurements: ACV, ACA
- AC Bandwidth: 2KHz
- Digital Display: 4000
- Non-Contact Voltage (NCV): Yes
- Overrange Indication: Yes
- Continuity: Yes
- Diode Test: Yes
- Jaw Size: 30mm
- Input Impedance: greater than 10 milliohms DCV and greater than 10 milliohms VAC
- Min Max: Yes
- Peak Hold: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Double injection moulding
- Low Battery Indication: Yes
- Batteries: 3x AAA
- Weight: 305g
- Dimensions: 220 x 80 x 39mm
- Safety Specs: IEC61010-1 CAT III 600V
