4.3" PanelPilot ACE Multifunction Display - IC-SGD 43-A
2 In Stock
Availability Info (?)
Order now and the extra items will likely dispatch before the 16th Sep 2025. Call 1300 737 871 (NZ 0800 737 871) to confirm.

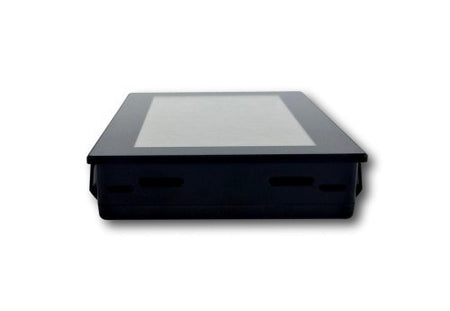

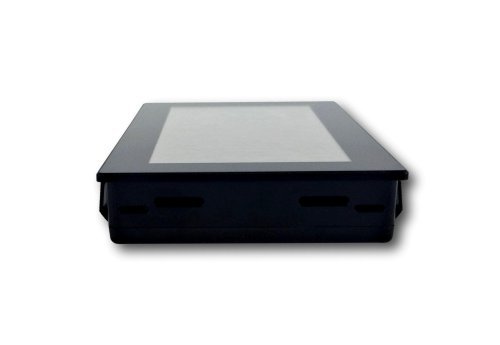

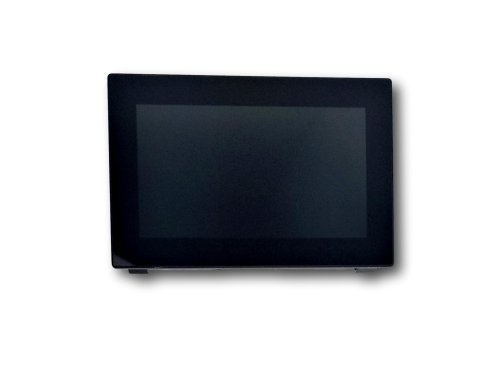

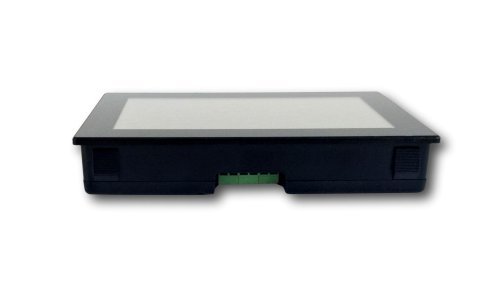

The SGD 43-A is the first in a range of PanelPilotACE compatible displays and panel meters. The low-profile display features a 4.3" capacitive touch-screen and a Cortex ARM 9 processor running embedded Linux.
Regular price
$471.00 AUD
+ GST
$518.10 AUD Inc. GST
$518.10 AUD Inc. GST

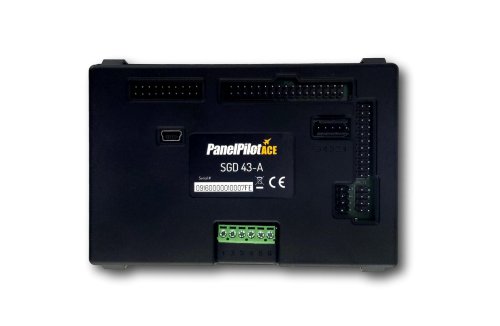

The SGD 43-A is the first in a range of PanelPilotACE compatible displays and panel meters. The low-profile display features a 4.3? capacitive touch-screen and a Cortex ARM 9 processor running embedded Linux. The display can be powered from either USB or a 5 to 30V d.c. supply and offers users a wealth
of hardware interfaces which include four 16bit bi-polar analogue inputs (to a maximum of ?40V d.c.), eight digital input/output pins, two alarm outputs
(maximum current sink 10mA) and four PWM outputs.

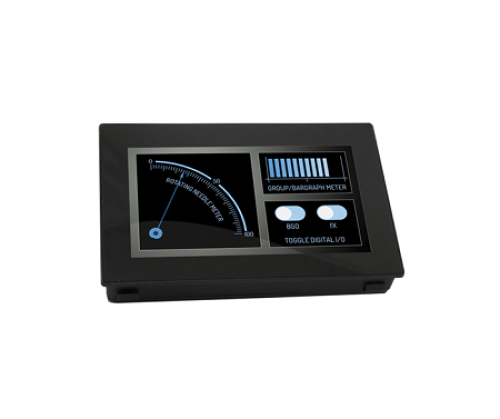

The design software provides a number of building blocks which allow users to drag-and-drop elements onto the screen to quickly create advanced user interfaces. From background images to text elements, analogue style meters, touch-screen navigation elements and even complex logic statements, users can build up multi-screen interfaces without needing to write a line of code.
There is a library of pre-defined elements such as meters, buttons and switches, and users can create their own content by combining elements or importing graphics in a number of formats (including jpg, png, tif, bmp and gif). The software includes support for transparency and multiple-layers.
Features:
? 4.3" Capacitive Touch Screen
? Low-profile panel mount module
? 4 x 16-bit analogue inputs
? 8 x digital I/O pins
? 2 x alarm outputs & 4 x PWM outputs
? Free PanelPilotACE Design Studio Software (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10)
The design software provides a number of building blocks which allow users to drag-and-drop elements onto the screen to quickly create advanced user interfaces. From background images to text elements, analogue style meters, touch-screen navigation elements and even complex logic statements, users can build up multi-screen interfaces without needing to write a line of code.
There is a library of pre-defined elements such as meters, buttons and switches, and users can create their own content by combining elements or importing graphics in a number of formats (including jpg, png, tif, bmp and gif). The software includes support for transparency and multiple-layers.
Features:
? 4.3" Capacitive Touch Screen
? Low-profile panel mount module
? 4 x 16-bit analogue inputs
? 8 x digital I/O pins
? 2 x alarm outputs & 4 x PWM outputs
? Free PanelPilotACE Design Studio Software (compatible with 32-bit and 64-bit versions of Windows 7, 8 and 10)
