4-25V range, Signal powered, Round hole mounted, Wire connections -IC-EMV-1200

ORDER ME IN
Product code: IC-EMV-1200

Backorder Now, once ordered your item will dispatch before the 12th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

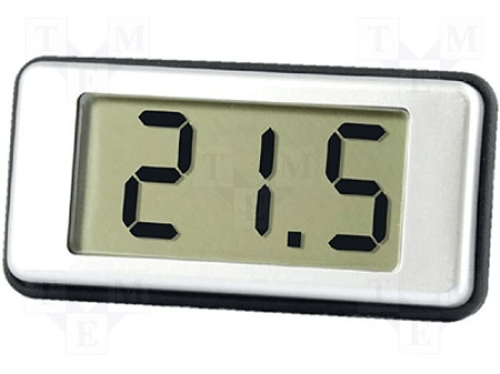

The EMV 1200 is a signal powered 3 digit LCD voltmeter with 12.5mm (0.5") digit height. It features a 4 to 25Vd.c. range. The meter can be panel mounted by drilling a 5.5mm (0.22") hole.

Read more

$74.00 AUD + GST
 $81.40 AUD Inc. GST

The EMV 1200 is a signal powered 3 digit LCD voltmeter with 12.5mm (0.5") digit height. It features a 4 to 25Vd.c. range. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via two wires.

Features:

3 Digit LCD Meter
4 to 25V Full Scale Reading
Signal Powered
2 Wire Operation
Round Hole Mounting

Specifications



Accuracy (overall error): 0.2 %(1 count)
Linearity: 1 count
Displayed reading: 4 to 25 V dc
Resolution: 100 mV d.c.
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Supply Voltage: 3 to 50 V d.c.
Supply Current: 3 mA
