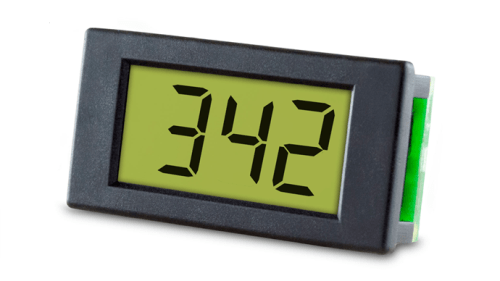

4-20mA loop powered, LED Backlit, Snap-in, Panel Meter - IC - DPM 342

ORDER ME IN
Product code: IC-DPM-342

Order Me In, Once ordered this item will likely dispatch before the 20th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

A compact loop powered indicator giving an accurate, zero corrected indication of 4-20mA loop current. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument. The DPM 342 features an integral snap-in bezel, making installation easy.

Read more

$139.00 AUD + GST
 $152.90 AUD Inc. GST

A compact loop powered indicator giving an accurate, zero corrected indication of 4-20mA loop current. Calibration is by two multi-turn potentiometers which allow sensitive adjustment of the instrument. The DPM 342 features an integral snap-in bezel, making installation easy. The module's LED back-lighting ensures a clear display, even under low light conditions. No soldering is required. Connection to the current loop is via two screw terminals. The correct decimal point is selected via a jumper link.

Features:

3 Digit LED Voltmeter
4-20mA Loop Powered
Wide Adjustment Range
Auto-polarity on Display
Low Volt Drop

Specifications



Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 200 ppm/C
Supply voltage: 5 to 6 V d.c.
Supply current: 4-20 mA
Input leakage current: 1-10 pA
Full scale reading (@20mA): 0 to 1999 Count
Offset adjustment range + (span x 0.25): -950 to +950 Count
