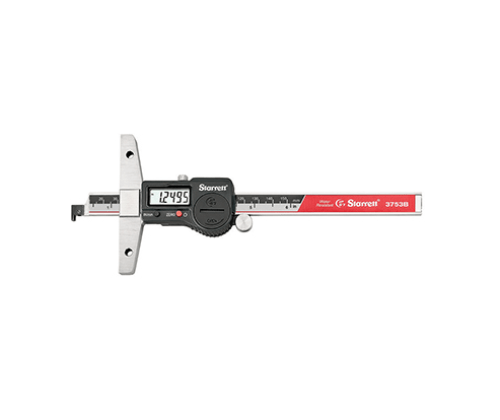

3753B-8/200 Electronic Depth Gage
Backorder Now, once ordered your item will dispatch before the 30th of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The 3753A series of electronic depth gauges is a versatile and easy tool with IP67 protection against coolants, wat, dust and dirt. This model measures between 0 to 12 inches/0 to 300 mm.
- Made from hardened stainless steel with a fine adjustment thumb wheel and lock screw
- A removable hook attachment is supplied when there is a need to take readings from the edge of slots, grooves and shoulders.
- Includes data output cable (RS232).
Regular price
$1,189.30 AUD
+ GST
$1,308.23 AUD Inc. GST
$1,308.23 AUD Inc. GST
The 3753B Electronic Depth Gage is a versatile, easy-to-use tool for measuring depth, slot width, small section sizes and other applications. The gage provides an IP67 level of protection against foreign matter in a hostile shop environment and has an extra-large LCD for excellent readability. It also offers RS232 output to work with Datasure Wireless Systems as well as with cable-based products.
2 Year Warranty (1 Year Manufacturer Warranty + Bonus 1 Year Instrument Choice Warranty)
3753B-8/200 Features
- Clear, easily-read numbers, properly sized for the tool
- Hardened stainless steel body and slide for long life
- Fine adjustment thumb roll for precision measurements
- Lock to hold the slide in position
- Hardened base is 3-15/16 inches (99mm) long, but optional base extensions of 7 and 12 inches (175 and 300mm) are available.
- Spacing between holes is 2-3/4 inches (70mm).
- Hook attachment, to take readings from the edge of a work piece to edges of slots, grooves, shoulders, and other I.D. length dimensioning.
- The removable hook has the screw permanently attached to prevent loss.
- One-year minimum battery life with furnished 3-volt battery, CR2032
- Inch/millimeter conversion
- Zero at any position
- Automatic shutoff after 30 minutes of non-use without loss of position upon reactivation
- Linear accuracy :+/- .001" inches (0.03mm)
- Resolution: 0.0005"(0.010mm)
Specifications
Range (in):
|
0 to 12 inches
|
Range (mm):
|
0mm to 200 mm
|
Resolution (in): )
|
0.0005 inches
|
Resolution (mm):
|
0.01mm
|
