MT745 3000A AC True RMS Clamp Meter

ORDER ME IN
Product code: MT745

Order Me In, Once ordered this item will likely dispatch before the 21st of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

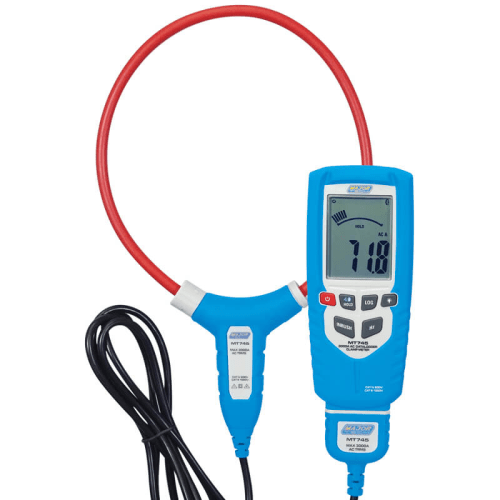

This is a true RMS, wireless, clamp meter designed to be used in compact and tight spaces. It is a CAT IV 600V and CAT III 1000V meter that measures AC current, frequency and True RMS.

  • Includes an 8mm flexible coil that can be used in spaces wherein a conventional clamp will not fit.
  • Has a Bluetooth interface that allows for real-time measurement and data transfer.
  • Built with a user-friendly interface; start your recording session at a touch of a button.

Read more

$269.90 AUD + GST
 $296.89 AUD Inc. GST

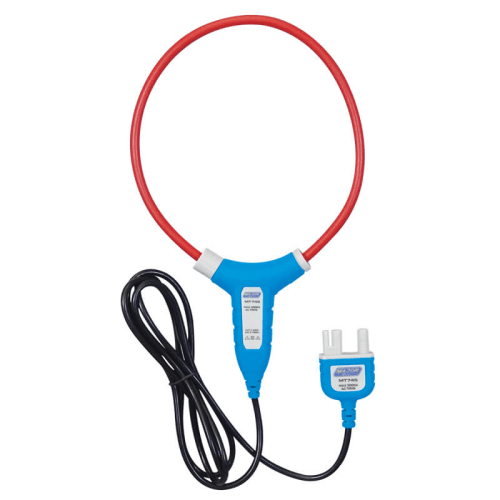

The MT745 3000A AC True RMS Clamp Meter with Data Logging is ergonomically designed for ease of use in confined spaces. The 8mm flexible coil can easily fit around flat busbar or parallel supply cables and can also be maneuvered into cable trays where conventional hard jaw clamps cannot reach. The Bluetooth feature can be used to perform live recordings or to transfer recorded data to a smart phone app. Using the Log Key will start a recording that will be stored on the instrument. The smart phone app allows the user to retrieve Data as well as set up recording sample rate. This meter records up to 16 320 readings set at intervals of 5 seconds, 10 seconds, 20 seconds and 1 minute.
This 3000A AC True RMS Clamp Meter features inrush current measurement as well as frequency measurement and has a large backlit LCD display making it easier to read measurements.
Features:
- CAT IV 600V and CAT III 1000V
- AC current True RMS measurements
- AC Current: 3000A
- Frequency: 400Hz
- 3000 count Backlight LCD
- Analogue Bargraph
- Bluetooth interface
- 3000A AC flexible clamp
- Data Hold
- Inrush Current
- 16 320 readings
- Recording intervals set at 5 seconds, 10 seconds, 20 seconds and 1 minute

Specifications

- AC Current: 0.01A to 3000A x 0.01A +/- (3.0% + 5 Digits)
- Frequency: 50Hz to 400Hz x 0.1A +/- (3.0% + 5 Digits)
- True RMS Measurements: ACA
- AC Bandwidth: 50 to 400Hz
- Digital Display: 3000
- Bargraph: Yes
- Data Logging: Yes
- Overrange Indication: Yes
- Jaw Size: 150mm Flexi Clamp
- Min Max: Yes
- Data Hold: Yes
- Back Light: Yes
- Enclosure: Moulded case
- Low Battery Indication: Yes
- Batteries: 2 x AAA
- Weight: 315g
- Dimensions: 230 x 76 x 40mm
- Safety Specs: IEC61010-1 CAT IV 600V
