2.4" PanelPilot Current Loop Indicator, Compatible Smart Graphics Display
2.4" PanelPilot Current Loop Indicator, Compatible Smart Graphics Display
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 09th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

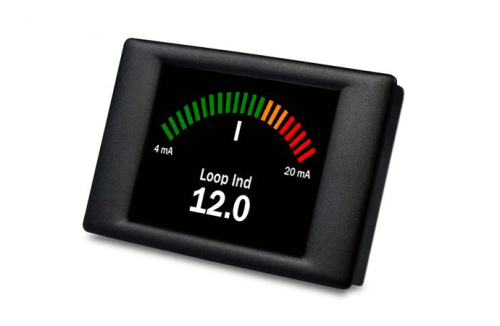

The PanelPilot Current Loop Indicator has a 320 x 240 pixel (QVGA) colour display and USB programming interface. Using PanelPilot for Windows software, users are able to choose from an ever increasing number of configurations which can then be customised for their needs.
Regular price
$181.00 AUD
+ GST
$199.10 AUD Inc. GST
$199.10 AUD Inc. GST
The SGD 24-M is a PanelPilot Compatible graphics display with a 320 x 240 pixel (QVGA) colour display and USB programming interface.
Colors, text labels, splash screen and input scaling can all be customized by the user through the software and then uploaded to the SGD 24-M through the USB connection.

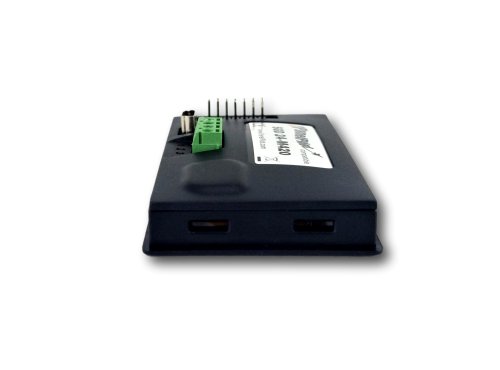

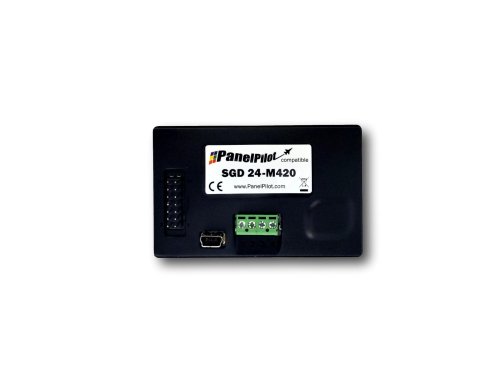

Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw terminals to connect the inputs.
Features:
- 2.4 inch color TFT screen
- Programmable with USB interface
- Measures 4 - 20mA current loop (also 10-50mA or 0-50mA possible)
- Operating voltage of 4V-30V d.c.
- Simple panel mounting solution
- Linearity: 1 count
- Sample rate: 3 samples/sec
- Operating temperature range: 0 to 40 C
- Supply voltage: 4 to 30 V d.c.
- Supply current: 35 to 190 uA
- Measurement range: 0 to 50 mA
- Lop volt drop: 0 to 5 V
Colors, text labels, splash screen and input scaling can all be customized by the user through the software and then uploaded to the SGD 24-M through the USB connection.
Panel or enclosure installation of the display is simple, using a panel fixing clip to mount the display, and 4 screw terminals to connect the inputs.
Features:
- 2.4 inch color TFT screen
- Programmable with USB interface
- Measures 4 - 20mA current loop (also 10-50mA or 0-50mA possible)
- Operating voltage of 4V-30V d.c.
- Simple panel mounting solution
Specifications
- Accuracy (overall error): 0.05 to 0.1 % (+/- 1 count)- Linearity: 1 count
- Sample rate: 3 samples/sec
- Operating temperature range: 0 to 40 C
- Supply voltage: 4 to 30 V d.c.
- Supply current: 35 to 190 uA
- Measurement range: 0 to 50 mA
- Lop volt drop: 0 to 5 V
