200mVdc full scale, Snap-in, Panel Meter - IC-DPM 340
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 09th of July 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

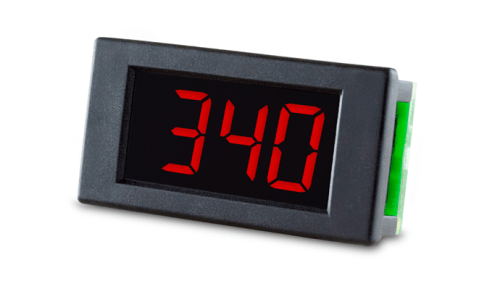

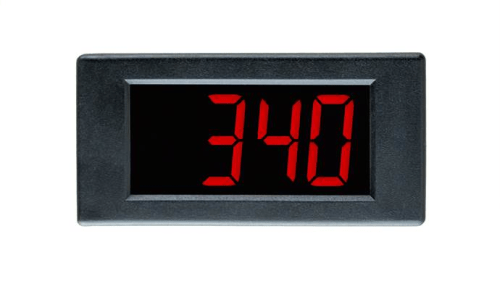

The DPM 340 is a 3 and a half, digit LED voltmeter with 8mm (0.31") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a SIL socket or can be snapped into a panel. Connection to the meter is via a single row of pins
Regular price
$87.00 AUD
+ GST
$95.70 AUD Inc. GST
$95.70 AUD Inc. GST
Features:
3 Digit LED Voltmeter
200mV Full Scale Reading
SIL Pin Connections
Snap-In Module
Specifications
:Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 150 ppm/C
Supply voltage: 4.75 to 5.25 V d.c.
Supply current: 50-60 mA
Input leakage current: 1-10 pA
