Home > 200mVdc full scale, Snap-in Bezel, Panel Meter - IC-DPM 400
Lascar

200mVdc full scale, Snap-in Bezel, Panel Meter - IC-DPM 400

ORDER ME IN
Product code: IC-DPM-400

Backorder Now, once ordered your item will dispatch before the 05th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

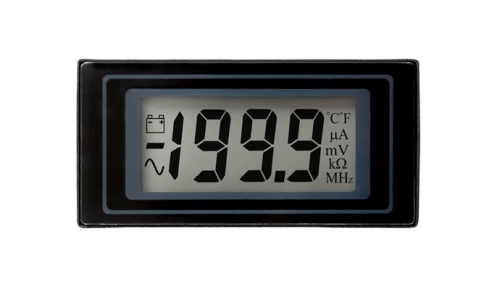

The DPM 400 is a 3 and a half digit LCD voltmeter with 10mm (0.39") digit height and annunciators. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a DIL socket or can be panel mounted using the snap-in bezel and window.

Read more

$87.00 AUD + GST
 $95.70 AUD Inc. GST

The DPM 400 is a 3 digit LCD voltmeter with 10mm (0.39") digit height and annunciators. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a DIL socket or can be panel mounted using the snap-in bezel and window. Connection to the meter is via two rows of pins.

Features:

3 Digit LCD Voltmeter
200mV Full Scale Reading
Auto-zero, Auto-polarity
DIL Pin Connections
Snap-In Bezel

Specifications



Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply voltage (V+ to V-): 7 to 14 V d.c.
Low battery threshold: 7.5 V
Supply current: 150 uA
Input leakage current: 1-10 pA
