Lascar | See more Process Instruments

200mVdc full scale, LED backlit, Clip mounted, Direct compatibility with competing types, 12 Pin DIL connection - IC-SP 200

ORDER ME IN
Product code: IC-SP-200

Order Me In, Once ordered this item will likely dispatch before the 09th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The SP 200 features a 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into two 6-way SIL sockets and can be fitted into a panel via the fixing clip.

Read more

$60.00 AUD + GST
 $66.00 AUD Inc. GST

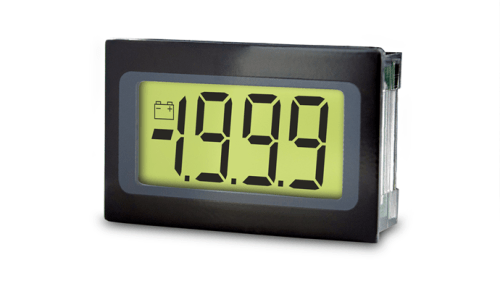

The SP 200 is a 3 digit LCD voltmeter with 9mm (0.36") digit height and LED backlighting. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into two 6-way SIL sockets and can be fitted into a panel via the fixing clip. Splashproof protection to IP65 is achieved by fitting the seal supplied. This module is directly compatible with competing products.

Features:

3 Digit LCD Voltmeter
LED Backlighting
200mV Full Scale Reading
12 Pin DIL Connection
IP65 Splashproof Protection

Specifications



Accuracy (overall error): 0.1 % (1 count)
Linearity: 1count
Sample rate: 2.5 samples/sec
Operating temperature range: 0 to 50 C
Temperature Stability: 100 ppm/C
Supply voltage: 3.4 to 5.25 V d.c.
Supply current: 350 uA
Input leakage current (Vin = 0V): 1 to 10 pA
