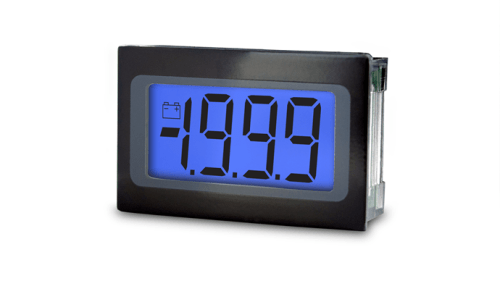

200mVdc full scale, LED backlit, Clip mounted, 9 Pin SIL connection - IC-SP 400-Blue
Backorder Now, once ordered your item will dispatch before the 23rd of May 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).
The SP 400 features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into a 9-way SIL socket and can be fitted into a panel via the fixing clip.
Regular price
$69.00 AUD
+ GST
$75.90 AUD Inc. GST
$75.90 AUD Inc. GST
The SP 300 is a 3.5 digit LED voltmeter with 9mm (0.36") digit height. It features 200mV d.c. full scale reading, auto-zero and auto-polarity. The meter plugs directly into an 8-way SIL socket and can be fitted into a panel via the fixing clip. Splashproof protection to IP65 is achieved by fitting
the seal supplied.
Features:
- 3.5 Digit LCD Voltmeter
- LED Backlighting
- 200mV Full Scale Reading
- 9 Pin SIL Connection
- IP65 Splash proof Protection
Specifications
- Accuracy (overall error): 0.1 % (+/- 1 count)
- Linearity: +/- 1 count
- Sample rate: 2.5 samples/sec
- Operating temperature range: 0 to 50 C
- Temperature Stability: 100 ppm/ C
- Supply voltage (V+ to GND configuration): 3.50 to 7.50 V d.c.
- Supply voltage (V+ to V): 6 to 15 V d.c.
- Supply current (V+ to GND configuration): 350 uA
- Supply current (V+ to V): 175 uA
- Back-light supply voltage: 4.75 to 5.0V d.c.
- Back-light supply current at 5V d.c.: 40 to 80 mA
- Input leakage current (Vin = 0V): 1 to 10 pA
