200mVdc full scale, Bezel mounted - IC-DPM 125
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 16th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

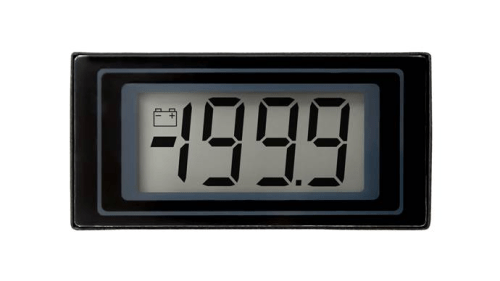

The DPM 116 is a 3 and a half digit LCD voltmeter with 12.5 mm (0.5") digit height. It features 200mV d.c. full scale reading, auto-zero, auto-polarity and digital hold. The meter plugs directly into a SIL socket or can be panel mounted using the snap-in bezel and window.
Regular price
$80.00 AUD
+ GST
$88.00 AUD Inc. GST
$88.00 AUD Inc. GST
Features:
3 Digit LCD Voltmeter
200mV Full Scale Reading
Auto-zero, Auto-polarity
SIL Pin Connections
Snap-In Bezel
Specifications
Accuracy (overall error): 0.05 to 0.1% (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply voltage (V+ to V-): 7.5 to 14 V d.c.
Supply current: 150 uA
Input leakage current (Vin = 0V): 1-10 pA
