200mVdc full scale, Bandgap Reference, Annunciators, Bezel Mounted - IC-DPM 2000
Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$101.20 AUD Inc. GST

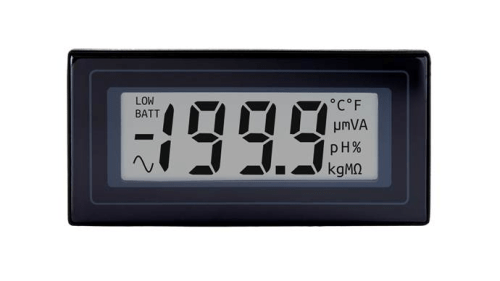

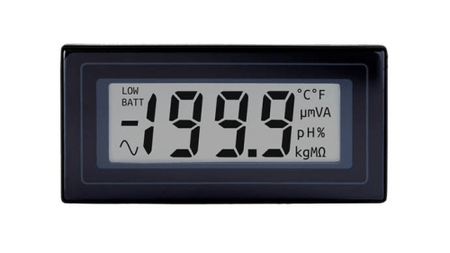

The DPM 2000 is a 3 digit LCD voltmeter with 12.5 mm (0.5") digit height. It features 200 mV d.c. full scale reading, a bandgap reference, auto-zero, auto-polarity and a set of annunciators. The meter plugs directly into a DIL socket or can be panel mounted using the bezel and window. Connection to the meter is via two rows of pins.
Features:3 Digit LCD Voltmeter
200mV Full Scale Reading
Auto-zero, Auto-polarity
Bandgap Reference
Snap-In Bezel
Specifications
Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 1.6 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 30 ppm/C
Supply voltage: 7.5 to 9 V d.c.
Supply current: 150 uA
Input leakage current (Vin = 0V): 1-10 pA
