200mVdc full scale, Annunciators, Bandgap reference, Dual channel, Bezel mounted - IC-DPM 702S
200mVdc full scale, Annunciators, Bandgap reference, Dual channel, Bezel mounted - IC-DPM 702S
ORDER ME IN
Backorder Now, once ordered your item will dispatch before the 12th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

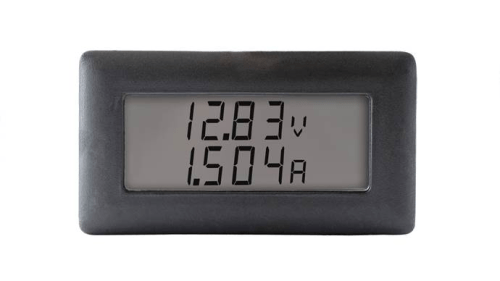

The DPM 702S is a dual channel 3.5 digit LCD voltmeter with 6.4 mm (0.25") digit height. It features two 200mV d.c. full scale reading inputs, auto-zero and auto-polarity. The meter plugs directly into a SIL socket and can be panel mounted using the bezel.
Regular price
$156.00 AUD
+ GST
$171.60 AUD Inc. GST
$171.60 AUD Inc. GST
Features:
3 Digit LCD Meter
Dual Channel Voltmeter
200mV Full Scale Reading
DIL Pin Connections
Bezel Mounted Module
Specifications
Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Full scale reading: -199.9 to 199.9 mV d.c.
Resolution: 100 uV d.c.
Operating temperature range: 0 to 40 C
Temperature stability: 100 ppm/C
Supply voltage: 3.5 to 7 V d.c.
Supply current: 700 uA
Input leakage current (Vin = 0V): 1 to 10 pA
