200mVdc and 2Vdc full scale, Digital hold, Bandgap reference, Snap-in Bezel - IC-DPM 160S
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

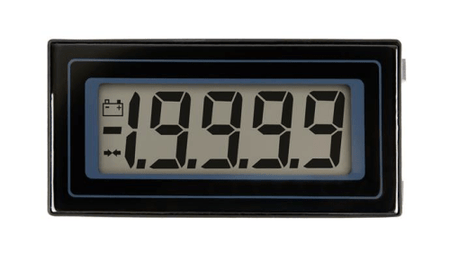

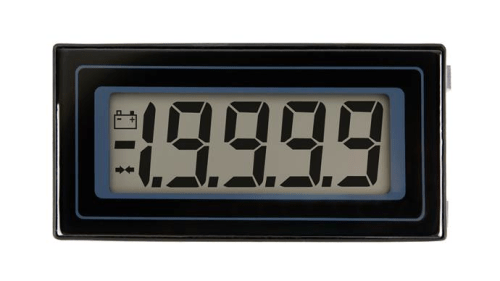

The DPM 160S is a 4 and a half, digit LCD voltmeter with 12.5 mm (0.5") digit height. It features 200 mV and 2 V d.c. full scale readings, auto-zero, auto-polarity and a set of annunciators. The meter plugs directly into a SIL socket or can be panel mounted using the snap-in bezel and window.
Regular price
$223.00 AUD
+ GST
$245.30 AUD Inc. GST
$245.30 AUD Inc. GST
Features:
4 Digit LCD Voltmeter
200mV or 2V Full Scale
SIL Pin Connections
Snap-In Bezel
Accuracy (overall error): 0.005 to 0.01 % (1 count)
Linearity: 1count
Sample rate: 1.6 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 30 ppm/C
Supply voltage (V+ to V-): 3 to 7 V d.c.
Supply current: 1 mA
Input leakage current (Vin = 0V): 1-10 pA
4 Digit LCD Voltmeter
200mV or 2V Full Scale
SIL Pin Connections
Snap-In Bezel
Specifications
Accuracy (overall error): 0.005 to 0.01 % (1 count)
Linearity: 1count
Sample rate: 1.6 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 30 ppm/C
Supply voltage (V+ to V-): 3 to 7 V d.c.
Supply current: 1 mA
Input leakage current (Vin = 0V): 1-10 pA
