Lascar | See more Process Instruments

200mV full scale, Round Hole Mounted, Wire Connections - IC-EMV-1025S-01

ORDER ME IN
Product code: IC-EMV-1025S-01

Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

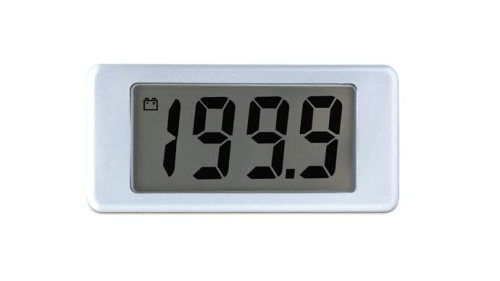

The EMV 1025S-01 is a 3.5 digit LCD voltmeter with 12.5mm (0.5") digit height. It features a full scale reading of 200mV and a decimal point fixed at 199.9.

Read more | Need help? 3 Hour Business Reply

$124.00 AUD + GST
 $136.40 AUD Inc. GST

The EMV 1025S-01 is a 3? digit LCD voltmeter with 12.5mm (0.5") digit height. It features a full scale reading of 200mV and a decimal point fixed at 199.9. The meter can be panel mounted by drilling a 5.5mm (0.22") hole. Connection to the meter is via three wires.

Features:

3 Digit LCD Meter
200mV Full Scale
Wire Connections
Round Hole Mounting

Specifications



Accuracy (overall error): 0.1 %(2 count)
Linearity: 1 count
Displayed reading: -1999 to 1999
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply Voltage: 3.5 to 7 V d.c.
Supply Current: 250 mA
