MT715 200A AC Clamp Meter

ORDER ME IN
Product code: MT715

Order Me In, Once ordered this item will likely dispatch before the 16th of October 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

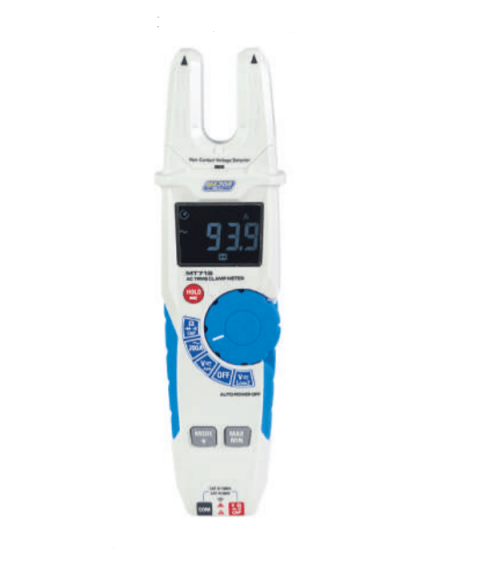

The MT715 is a CAT IV 600V, 6000 count True RMS 200A AC digital clamp meter with indication on a large backlit negative LCD display, with a clamp jaw opening of 16mm.

Read more

$215.00 AUD + GST
 $236.50 AUD Inc. GST
The MT715 is a CAT IV 600V, 6000 count True RMS 200A AC digital clamp meter with indication on a large backlit negative LCD display,
with a clamp jaw opening of 16mm. This open jaw clamp meter is designed to assist in the ease of measuring current in crowded or tight cable areas, as the jaws need only be pushed over the wire to obtain accurate readings.
The meter measures 1000V AC/DC, capacitance and resistance measurements, plus a Min and Max mode. The Low Z range function has a low pass filter to eliminate errors caused by Ghost voltages, and has features of Non-Contact Voltage detection, diode test function, a continuity buzzer and a built-in flashlight. Housed in a modern double moulded rubber housing with a rugged design for heavy duty use.
Features:
- 6000 count negative LCD display
- Open Jaw Sensor
- 16mm diameter Cable Clamp size
- Measures DC voltage and AC voltage up to 1000V
- Capacitance to 4000F
- NCV - Non-Contact Voltage Detector
- Low input impedance prevents false readings due to Ghost voltage (LoZ)
- Built-In Flashlight
- Continuity buzzer and Diode Test
- Min/Max and Data Hold function
- Auto Power Of

Specifications

- AC Current: 200.0A +/- (3.0% +5)
- DC Voltage: 6.000V to 1000V +/- (1.0% +2)
- AC Voltage: 6.000V to 1000V +/- (1.2% +2)
- DC Current: 60.00mA to 10A +/- (1.2% +3)
- Resistance: 600.0 to 60M +/- (1.5% +4)
- Frequency: 9.999Hz to 99.99MHz +/- (1.2% +5)
- Capacitance: 60.00nF to 4000F +/- (3.0% +5)
- Temperature: -40C to 1000C +/- (1.5% +5C)
- Size: 250 x 78 x 40mm
- Weight: 350g
