2-wire signal-powered meter with screw terminals and splashproof protection - IC-SP 5-1200-40

ORDER ME IN
Product code: IC-SP-5-1200-40
SP 5-1200-40 is an easy to mount LCD digital panel meter with LED backlighting. It features a 4 to 40V measurement range with 200mV resolution, ideal for low or high volume applications.

Read more | Need help? 3 Hour Business Reply

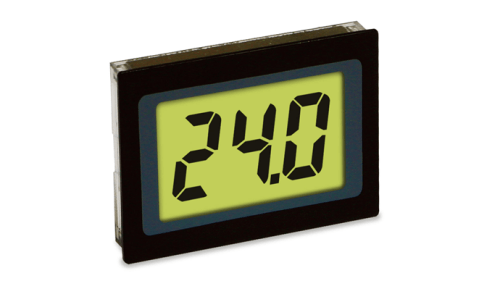

The SP 5-1200-40 is an easy to mount LCD digital panel meter with LED backlighting. The module features a 4 to 40V measurement range with 200mV resolution and is powered from the signal it is measuring. Only valid readings are displayed the module indicates "LO" at voltages below 4V and "HI" at voltages above 40V. Screw terminals allow for quick and easy connection. The module is panel mounted using the metal clip provided and a rubber seal is included, providing splashproof protection for the unit when fitted to the meter during installation.

Features:

18mm (0.7") Digit Height
2-Wire Operation
Reverse Polarity Protection
4 to 40Vd.c. F.S.R.
Splash-proof

Specifications

:

Accuracy (overall error): 0.2 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Valid displayed reading: 4.0 to 40.0 V d.c.
Resolution: 200 mV d.c.
Operating temperature range: 0 to 50 C
Temperature Stability: 100 ppm/C
Supply voltage (Meter): 3 to 50 V d.c.
Supply current (Meter): 1.5 uA
Back-light supply voltage: 5 to 5.0V d.c.
Back-light supply current 50 mA
