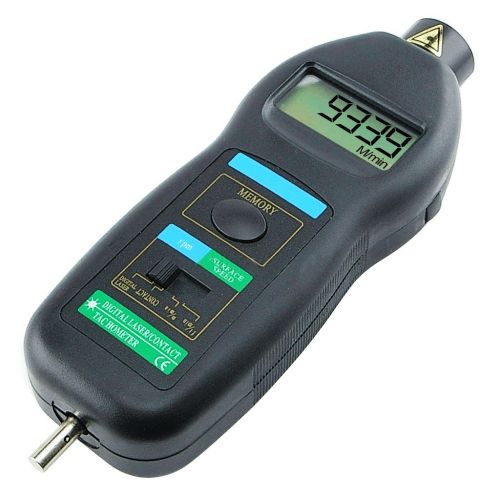

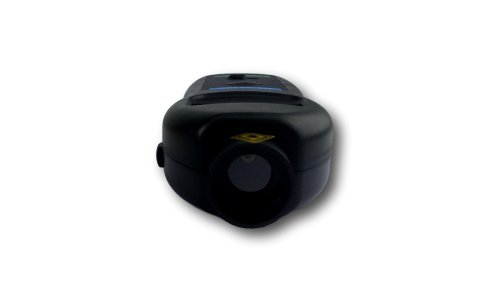

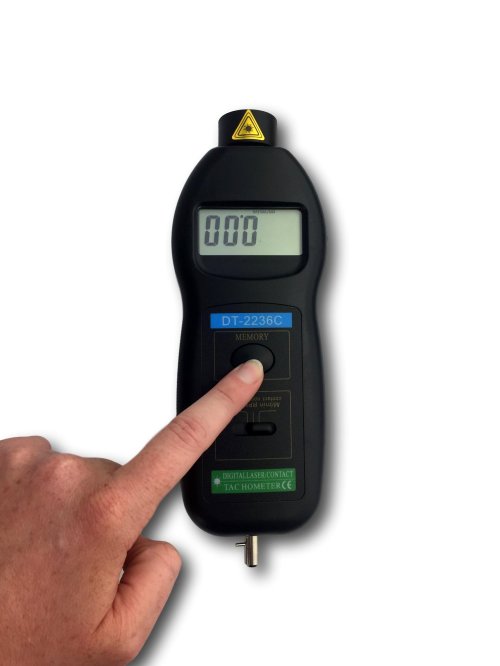

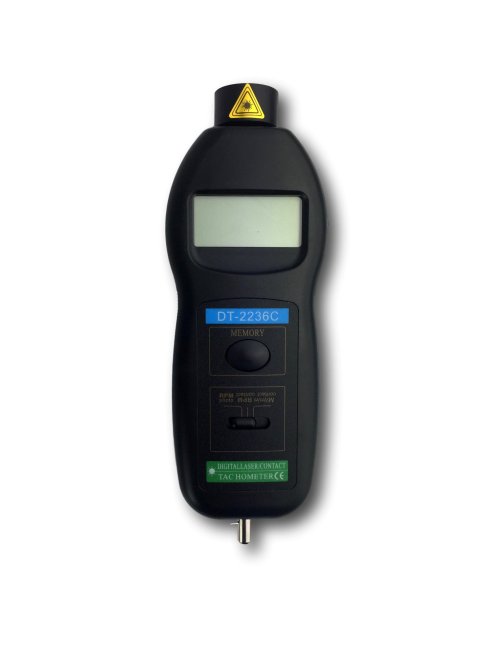

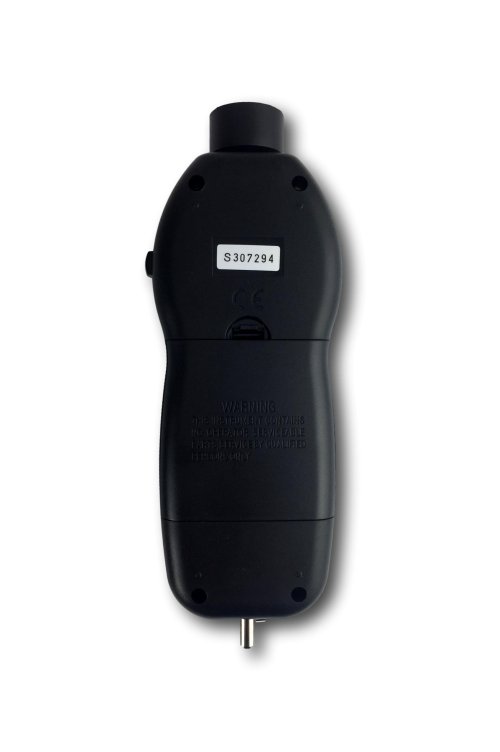

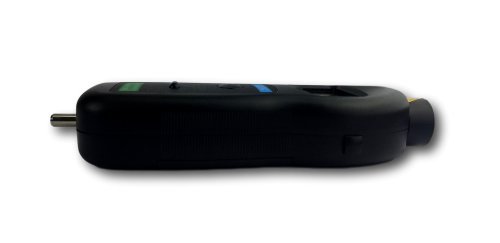

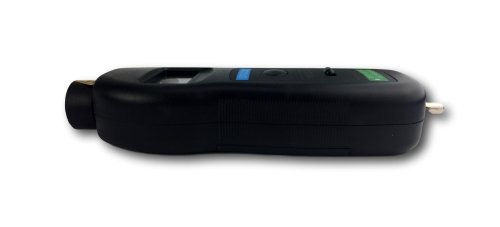

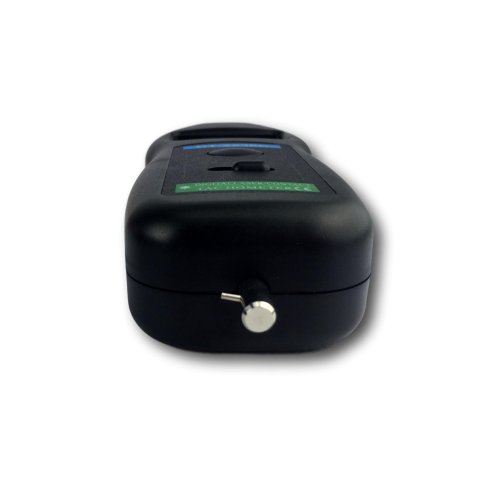

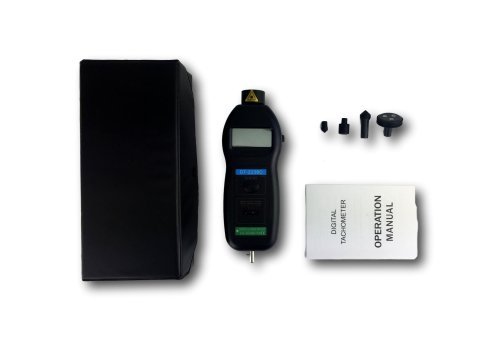

2 in1 Digital Contact And Non-Contact Tachometer - IC-TAC-02

ORDER ME IN
Product code: IC-TAC-02

Order Me In, Once ordered this item will likely dispatch before the 22nd of December 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

2in1 Digital Contact and Non-Contact Tachometer Laser / Photo / w/ ft & m/min RPM Auto Ranging

Read more

$169.90 AUD + GST
 $186.89 AUD Inc. GST

This meter is a contact and non-contact tachometer.It combines the accuracy & quick measurements and high RPM measurement of a modern laser tachometer. It provides measuring range of 2.5 to 99,999RPM (laser), 0.5 to19,999RPM (contact) and surface speed is displayed in both m/min & ft/min. It has Auto Ranging, detecting distance of up to 500mm or 20inch and accuracy of +/- (0.05% +1digit).

With this it produce consistent accurate readings in seconds with no guessing or error. Plus, it automatically store Last, Maximum and Minimum values and can be recall anytime. Safe & accurate measuring of RPM & rotational speed without inflicting any damage to the target object.
Features:
- Laser photo & surface contact measurements
- Reads in RPM (2.5 to 99,999), m/min (0.05 to 1,999.9) and ft/min (0.2 to 6,560)
- Wide Measuring Range of 0.5 to 99,999RPM
- With Auto Ranging and automatic low power indication
- LSI-circuit and crystal time base mechanism for high accuracy & fast measuring time
- Last value, maximum value and minimum value
- Insignificant zero suppression
- Durable & light weight
- Tested according to European international guidelines and standards (CE Marking)

Specifications

- Units of Measure: ft/min and m/min
- Display : 5 digits, 10mm LCD with function annunciation
- Measurement (Photo Tach): 2.5 ~ 99,999 RPM
- Measurement (Contact Tach): 0.5 ~ 19,999 RPM
- Measurement (Surface Speed): 0.05 ~ 1,999.9m/min; 0.2~ 6,560 ft/min
- Resolution (Photo Tach): 0.1RPM (2.5 ~ 999.9 RPM); 1 RPM(over 1,000 RPM)
- Resolution (Contact Tach): 0.1 RPM (0.5 ~999.9 RPM); 1 RPM(over 1,000 RPM)
- Resolution (Surface Speed): 0.01 m/ min.(0.05~99.99 m/min); 0.1m/ min.(over 100 m/min); 0.1ft/min (0.1 ~ 999.9 ft/min); 1ft/min (over 1000 ft/min)
- Accuracy : +/- (0.05% +1 digit)
- Sampling Time : Photo Tach (1 sec,over 60 RPM); ContactTach (1 sec, over 60 RPM)
- Photo Tach. Detecting Distance: 50~500mm/2~20inch
- Memory : Last value, Max. value, Min.value
- Test Range Select : Automation
- Time Base: Quartz crystal
- Circuit : Exclusive one chip of microcomputer LSI circuit
- Battery: 4 x 1.5AA Battery
- Operation Temperature : 0~50?C(32~122?F)
- Size : 215 x 65 x 38mm
- Weight: 300g including battery
