1Vdc full scale, Analog style display, Round hole mounted, Wire connections - IC-EMA 1710

ORDER ME IN
Product code: IC-EMA-1710

Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

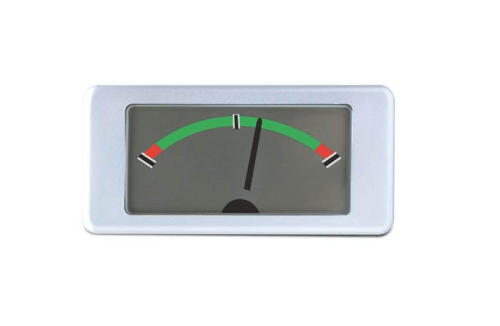

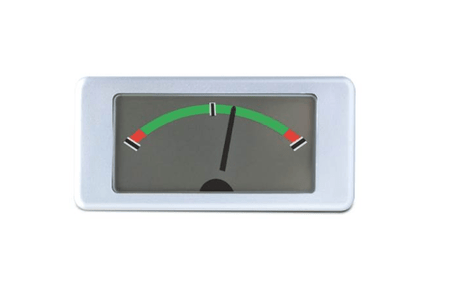

The EMA 1710 is a voltmeter with analog style display, featuring 9 needle positions and a 1V d.c. full scale reading. The meter can be panel mounted by drilling a 5.5mm (0.22") hole.

Read more | Need help? 3 Hour Business Reply

$72.00 AUD + GST
 $79.20 AUD Inc. GST

This panel meter features an analogue style LCD for measurement of voltage. Fitted with a threaded stud which allows mounting of the product through a 5.5mm (7/32?) drill hole, this unique enclosure provides quick and easy mounting. A rubber seal provides splashproof protection when fitted between the meter and mounting panel. Connection is via wires.

Specifications

- Range: 1 V d.c.
- Accuracy (overall error): 1 segment
- Operating temperature: 0 to 50 ?C (32 to 122 ?F)
- Sample rate: 10 samples/sec
- Supply voltage: 5 to 12 V d.c.
- Supply current: 6 mA
Applications:
- Precision Instrumentation Systems
- Power Supply Monitoring
- Hand held instruments
- Panel-Mount Indication
- Automotive Projects
