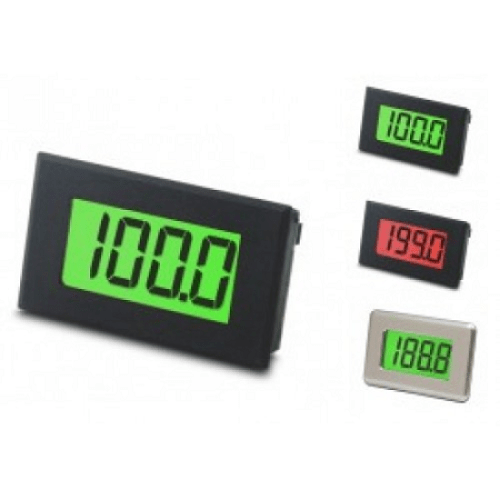

19mm (0.75"), 3.5 Digit LCD Voltmeter with Programmable Red/Green Backlight - IC-DPM 950S-FPSI

ORDER ME IN
Product code: IC-DPM-950S-FPSI

Backorder Now, once ordered your item will dispatch before the 09th of June 2025, call 1300 737 871 (NZ 0800 737 871 to confirm).

The DPM 950S-FPSI is a standard 3.5 Digit LCD Voltmeter that can also be used as a dual colour go-stop display. This functionality is ideal for simplifying monitoring applications, where an operator needs to know the status of the equipment at a glance.

Read more

$154.00 AUD + GST
 $169.40 AUD Inc. GST

The DPM 950S-FPSI is a standard 3.5 Digit LCD Voltmeter that can also be used as a dual color go-stop display. This functionality is ideal for simplifying monitoring applications, where an operator needs to know the status of the equipment at a glance.

During standard operation the back-light is green, however if the reading goes outside the user programmable thresholds, the display will turn red. The user can then read off the actual value from the display and take corrective action.

3 open collector outputs are included, that indicate high, ok and low conditions. Both the back-light color and outputs can be inverted independently. Module setup is a simple operation, using a six-way DIP switch and two push buttons. No special tools or equipment are required.

Features:

19mm (0.75) Digit Height
Dual colour backlight with programmable high and low levels
Open collector outputs that mirror the backlight status
Auto-zero, auto-polarity
200mV d.c. Full Scale Reading (F.S.R.)

Specifications



Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 100 ppm/C
Supply voltage: 4.5 to 5.5 V d.c.
Supply Current (excluding backlight): 500 mA
Back-light supply current: 35 mA
Input leakage current (Vin = 0V): 10 pA
