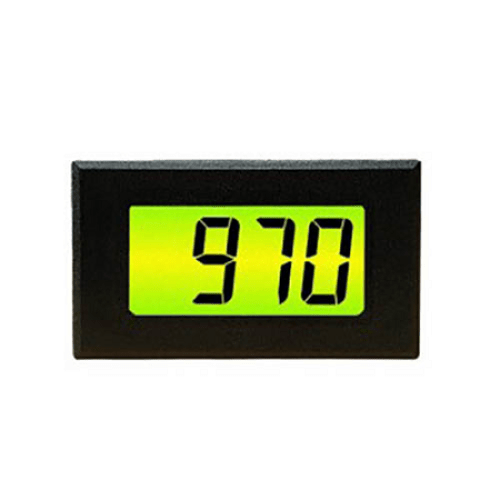

19mm (0.75"), 3.5 Digit, 500Vac full scale, LED backlit, Digital hold, Bezel mounted - IC-DPM 970
Order Me In, Once ordered this item will likely dispatch before the 02nd of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.
$217.80 AUD Inc. GST
Features:
3 Digit LCD Meter
500V a.c. RMS Full Scale
Digital Hold Function
Screw Terminal Connections
Bezel Mounted Module
Specifications
Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 200 ppm/C
Supply voltage (V+ to V-): 4.75 to 5.25 V d.c.
Supply Current: 50 to 90 mA
Input leakage current (Vin = 0V): 1 to 10 pA
Warm-up time: 10 minutes
Full scale reading: 0 to 1999 Vrms
Resolution: 1 Vrms
Frequency range (input voltage): 15 to 15K Hz
Input impedance (2kV range): 1 Mohm
DC supply voltage: 7.5 to 14V d.c.
Supply current (backlighting off): 1.5 mA d.c.
Supply current (backlighting on) @ 5V d.c.: 50 mA d.c.
