19mm (0.75"), 3.5 Digit, 200mVdc full scale, LED backlit, Bezel mounted - IC-DPM 950
ORDER ME IN
Order Me In, once ordered this item will likely dispatch before the 15th of September 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

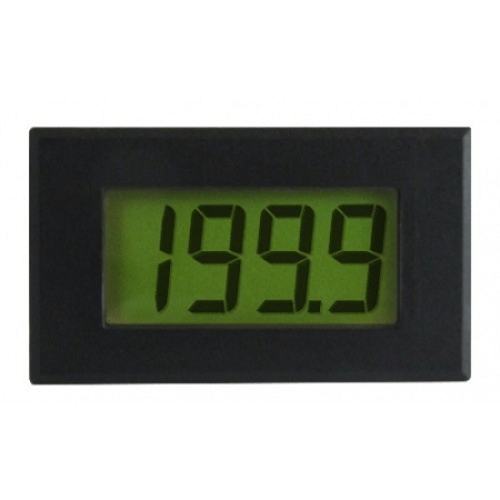

The DPM 950 is a 3.5 digit LCD voltmeter with 19mm (0.75") digit height and LED backlighting. It features 200mV d.c. full scale reading, auto-zero and auto-polarity.
Regular price
$119.00 AUD
+ GST
$130.90 AUD Inc. GST
$130.90 AUD Inc. GST
Features:
3 Digit Backlit LCD Meter
200mV Full Scale Reading
Auto-zero, Auto-polarity
DIL Pin Connections
Bezel Mounted Module
Specifications
Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Temperature stability: 100 ppm/C
Supply voltage: 7.5 to 14 V d.c.
Supply Current: 150 uA
Backlight supply current @ 5V d.c.: 50 uA
Input leakage current (Vin = 0V): 1 to 10 pA
