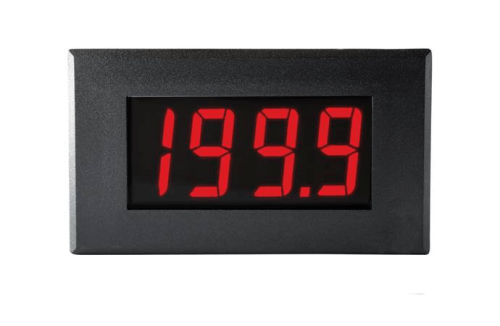

19mm (0.75"), 200mVdc full scale, LED meter, Bezel mounted - IC-DPM 959B

ORDER ME IN
Product code: IC-DPM-959B

Order Me In, Once ordered this item will likely dispatch before the 02nd of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

A compact meter ideally suited to applications where excellent readability under all lighting conditions is required. The meter is fitted with high efficiency LEDs, which together with the integral red filter, give a high contrast display with 19mm digit height.

Read more

$112.00 AUD + GST
 $123.20 AUD Inc. GST

A compact meter ideally suited to applications where excellent readability under all lighting conditions is required. The meter is fitted with high efficiency LEDs, which together with the integral red filter, give a high contrast display with 19mm digit height. The meter can be easily scaled by the user to indicate volts, amps or other engineering units and may be used in single-ended, differential, ratio-metric or floating input modes.

Features:

19mm (0.75") Digit Height
Selectable Decimal Points
Auto-zero
Auto-polarity
200mVd.c. Full Scale Reading

Specifications



Accuracy (overall error): 0.05 to 0.1 % (1 count)
Linearity: 1count
Sample rate: 3 samples/sec
Operating temperature range: 0 to 50 C
Temperature stability: 150 ppm/C
Supply voltage (V+ to V-): 4.75 to 5.25 V d.c.
Supply Current: 50 to 90 mA
Input leakage current (Vin = 0V): 1 to 10 pA
Warm-up time: 10 minutes
