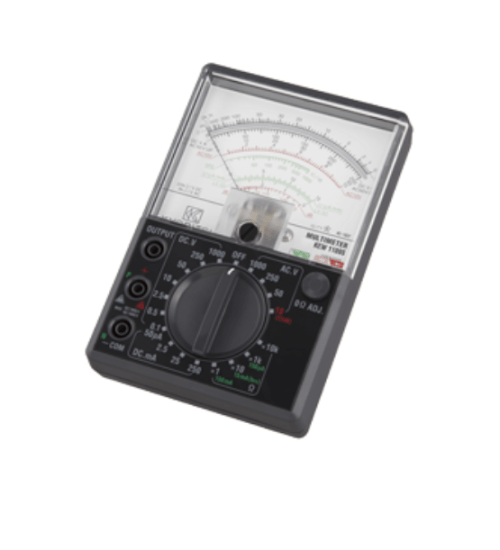

1109S Kyoritsu Analogue Multimeter
Unfortunately, the 1109S has been discontinued, check out our other Digital Multimeters for more options.
1109S analog multimeter with mirrored scale for easy and accurate reading and safety designed input terminals and test leads.
Unfortunately, the 1109S has been discontinued, check out our other
Digital Multimeters for more options.
Specifications
- DC V: 0.1 / 0.5 / 2.5 / 10 / 50 / 250 / 1000V +/- 3% of FS (20 kiloohms/V)
- AC V: 10 / 50 / 250 / 1000V (9kiloohms/V) +/- 3% of FS
- DC A: 50uA / 2.5 /25 / 250mA +/- 3% of FS
- Resistance: 2 / 20 kiloohms / 2 / 20 milliohms +/- 3% of scale length
- Decibel: -10 to +62dB
- hFE: 0 to 1000 (ohm 10) +/- 3% of scale length
- Power source: R6 (AA) (1.5V) x 2, 6F22 (9V) x 1
- Dimensions: 150(L) x 100(W) x 47(D)mm
- Weight: 330g approx.
