Casella | See more Environment Meters | See more Sound Level Meters

10x dBadge2ISPlus/KIT10 - IC-dBadge2Plus/KIT10

ORDER ME IN
Product code: IC-dBadge2ISPlus/KIT10

Order Me In, once ordered this item will likely dispatch before the 03rd of November 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

The kit contains 10 dBadge2 Plus Noise Dosimeter, Calibrator, Dock, 3-way Charger, Peli Case and Insight Software. The dBadge2 Plus Noise Dosimeter mounts on the worker's shoulder, measuring the noise levels throughout the working day. The dBadge2 Plus also has audio recording capability for comparing different recorded sound levels. It measures all the parameters needed by the occupational noise regulations for many countries across the globe.

Read more | Need help? 3 Hour Business Reply

$37,640.00 AUD + GST
 $41,404.00 AUD Inc. GST

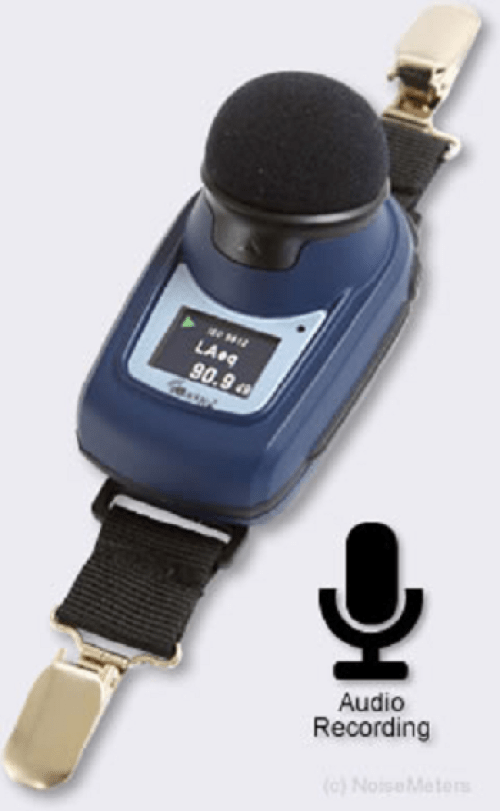

Casella's dBadge2 is compact, wearable device used to monitor personal noise exposure. The ‘plus’ model provides all the features of the standard, with the addition of audio recording. Audio recording can be used to record audio notes, optionally to record the audio above prescribed deciBel levels, allowing the identification spurious or damaging noise sources.

The kit contains 10 dBadge2 Plus Noise Dosimeter, Calibrator, Dock, 3-way Charger, Peli Case and Insight Software.

dBadge2 Plus features

- Bluetooth 4.0 wireless connectivity
- Audio Notes feature - The dBadge2 PLUS can record up to 15 seconds of voice notes at the start of the measurement.
- Audio Recording - Automatic recording trigger and user settings.
- Airwave App for mobile devices such as phones and tablets
- Multiple 'simulated' dosimeters
- Full colour display
- Motion sensor
- 1 second time history profiling
- Pause function
- Updated & Simplified Casella Insight Plug-in with advanced noise analysis features

Specifications

Acoustic:

- Standards: ANSI S1.25:1991 R2007, IEC 61252 Ed 1.1 (2002-3)
- Linear Operating Range: 55 to 140.3 dB(A) RMS
- Dynamic Range: 96dB
- Peak Measurement Range: 90 to 143.3 dB (C or Z weighted)
- Sound Exposure Range: 0.0- 6,100.0 PaHours/ 0.00 22,000,000.00 PaSec/0.0-100,000.0% Dose
- Frequency Weightings: A, C and Z
- Time Weightings: Fast, Slow and Impulse
- Exchange Rate: Q=3 or Q=5
- Threshold: 70 to 90 dB in 1 dB steps (set using Insight software)
- Criterion Level: 70 to 90 dB in 1 dB steps (set using Insight software)
- Stabilization Time: <3 seconds after power up

Audio recording:

- Trigger events/sources: LAF, LAS, LCpk, LZpk
- Audio recording storage (Notes): 15 seconds for each measurement run
- Audio recording storage (Events): 10 seconds with 3 second pre-trigger
- Sampling Rate: 8kHz, 16bit

Memory:

- Maximum Run Duration: 24 hours
- Maximum number of Runs: 100
- Storage Capacity: Internal USD Flash memory - 300 hours of run data (including 1 second profile data)

Technical:

- Battery: Internal NiMH, 800mAH (last up to 35 hours)
- PC Interface: USB 2.0 Full speed 12Mbps via Docking Station
- Bluetooth Connectivity: Bluetooth 4.0 (Low Energy or Smart)a
- TX Power: 0 dBm to -23 dBm
- Receiver sensitivity: -93 dBm
- Range: Typically 25m line-of-sight
- Display: 96 x 64 dots, full color OLED with adjustable contrast
- User Controls: Two buttons. Remote control via Airwave application
