Digitech

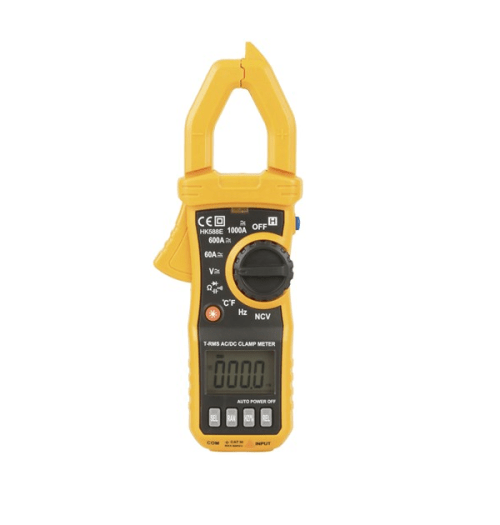

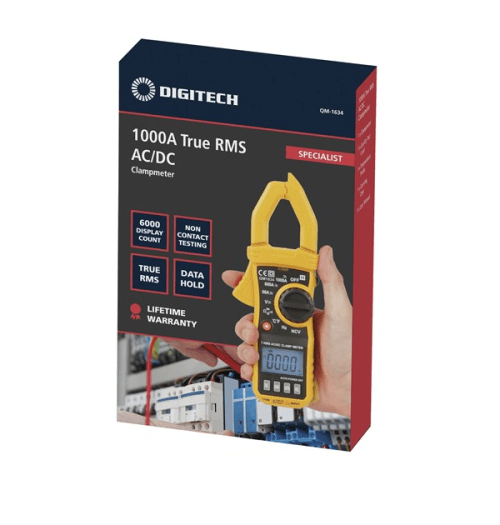

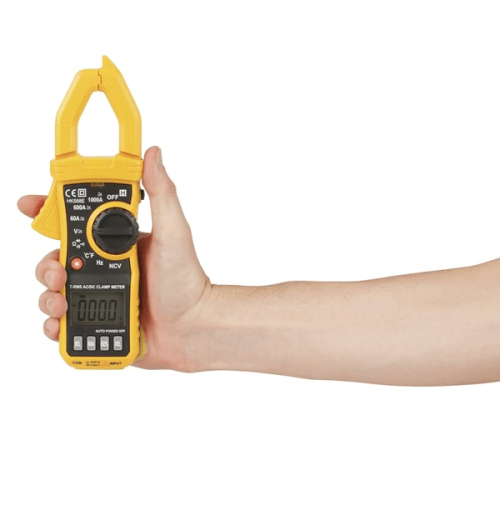

1000A True RMS AC/DC Clamp Meter - ICQM1634

ORDER ME IN
Product code: ICQM1634

Order Me In, once ordered this item will likely dispatch before the 14th of August 2025, call 1300 737 871 (NZ 0800 737 871) to confirm.

1000A True RMS clamp meter for non-contact voltage testing, relative and frequency measurement. Ideal for basic AC/DC current measurement. Includes carrying case.

Read more | Need help? 3 Hour Business Reply

$209.40 AUD + GST
 $230.34 AUD Inc. GST

Functions:

- True RMS
- Voltage
- Relative measurement
- Frequency measurement
- Capacitance
- Temperature
- Resistance

Features:

- Display: 6000 count
- Measurement Category: Cat III 600V
- Basic VDC Accuracy: 0.5%
- AC Rectification: True RMS
- Non contact voltage testing
- LINE test
- Data hold
- Backlight

Specifications

- Capacitance Ranges : 10.0nF, 100.0nF, 1.0F, 10.0F, 100.0F, 1.0mF, 10.0mF, 100.0F
- AC Current Ranges : 60.0A, 600.0A, 1000.0A
- DC Current Ranges : 60.0A, 600.0A, 1000.0A
- Frequency Ranges : 10.0Hz, 100.0Hz, 1.0kHz, 10.0kHz, 100.0kHz, 1.0MHz
- Resistance Ranges : 600.0, 6.0k, 60.0k, 600.0k, 6.0M, 60.0
- Outdoor / Exterior Scale : -20.000000 C, 1000.0 C
- Outdoor / Exterior Scale : 0.0 F, 1800.0 F
- AC Voltage Ranges : 600.0mV, 6.0V, 60.0V, 600.0V, 1000.0V
- DC Voltage Ranges : 600.0mV, 6.0V, 60.0V, 600.0V, 1000.0V
- Records Minimum : true
- Records Maximum : true
- Data Hold : true
- Display Type : LCD
- Display Backlight : White LED Backlit
- Safety Rating Cat : Cat III
- Safety Rating Max Volt : 600.0V
- Count / Maximum Reading : 6000.0 count
- True RMS : true
- Autorange : true
- Measures duty cycle : true
- Width : 72.0mm
- Height : 194.0mm
Depth : 35.0mm
Size / Shape : AAA
Battery quantity : 3.0pc
Batteries included : true
Batteries can be replaced by user : true
Compartment location : Back
How is battery compartment kept closed : Screw
Meter Input Impedence : 10.0M
